Wire Terminal Testing - Test Equipment Modification (86-22-11)

WIRE TERMINAL TESTING - TEST EQUIPMENT MODIFICATION

TECHNICAL SERVICE BULLETIN

APPLICATION

1984 - 86 Capri, LTD; 1984 - 87 Escort, EXP, Tempo, Mustang, Taurus, Thunderbird, Crown Victoria

SUBJECT

Diagnostic Tip for Wiring Continuity Testing of Connector Terminals.

REFERENCE

Ford Technical Service Bulletin No. 86-22-11

CONDITION & CAUSE

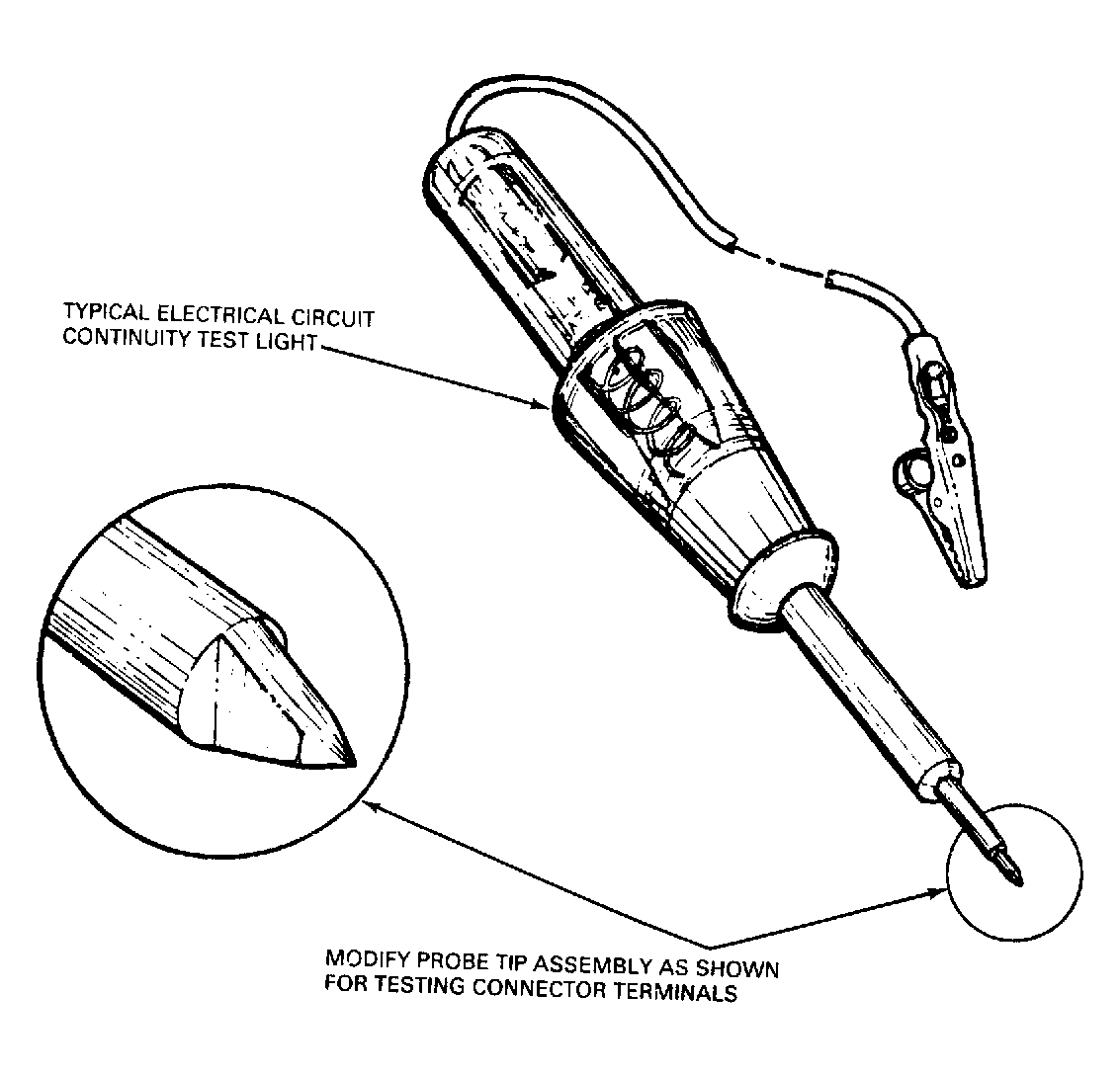

Loose terminal connections in the wiring harness connectors may cause a number of driveability conditions. When diagnosing electrical wiring concerns, connector terminals can be spread or damaged by "jamming" the tip of the ice pick-type test probes into the connector ends. Modification of the probe tip for testing is recommended to prevent damage to the connector terminals. See Fig 1 .
