Fuses & Circuit Breakers
›
Fuse Panel Identification
›
Notes
Fuse Panel Identification: Notes

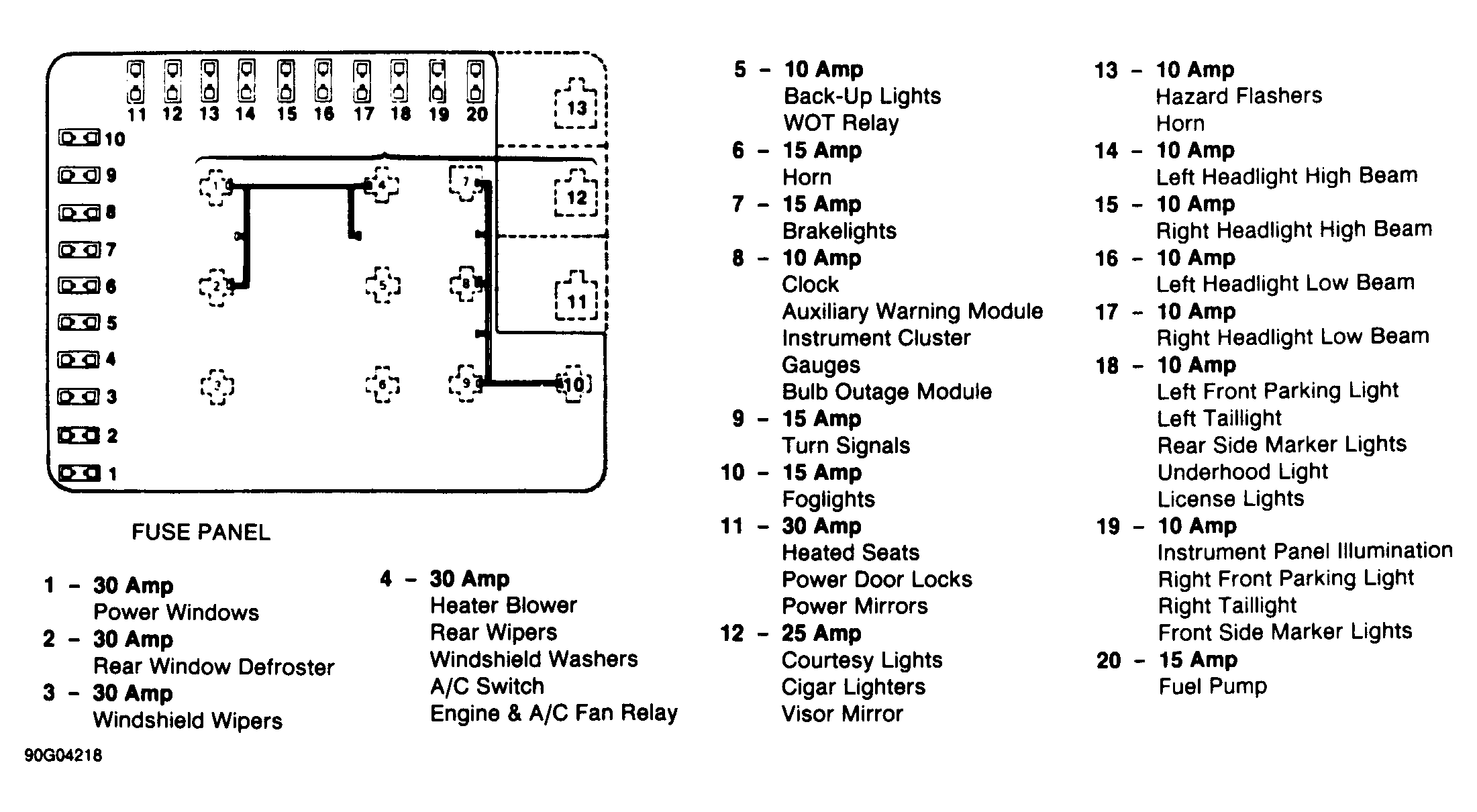

Fig 1: Fuse Panel Identification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
