Mini DVOM
›
Mini DVOM
›
The Functions
›
Push Button Functions
Push Button Functions

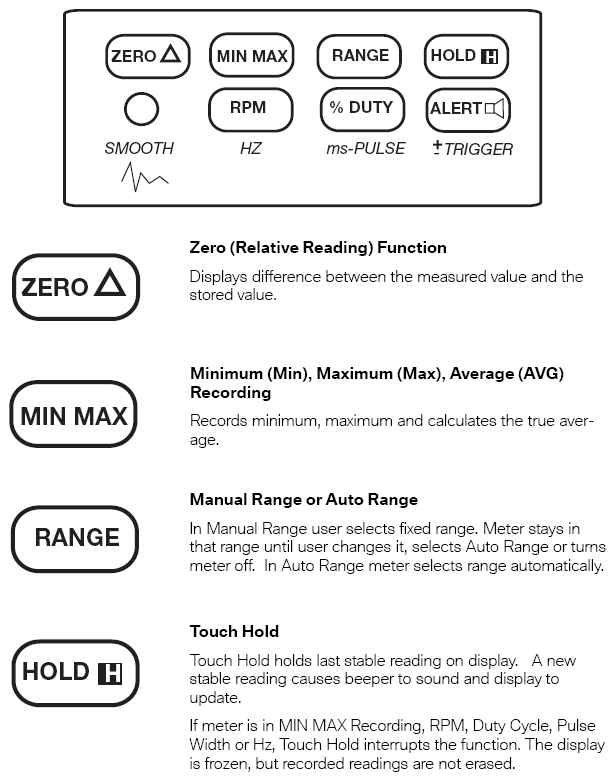

Fig 1: Push Button Function (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

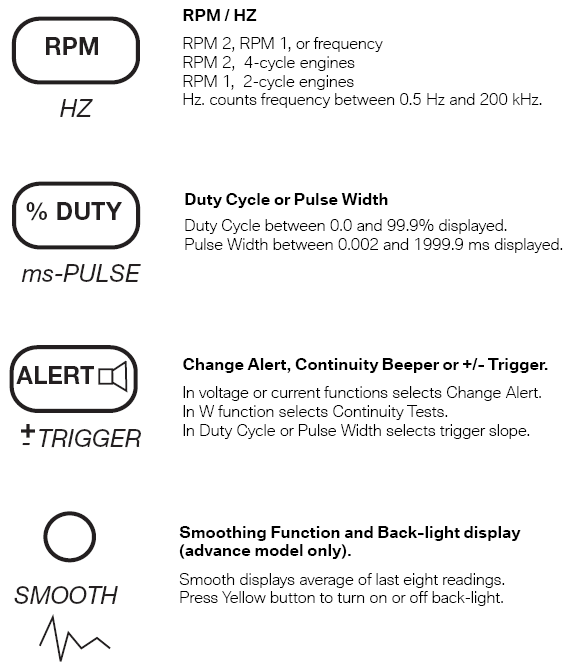

Fig 2: Push Button Function (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
