On Board Computer (OBC): Notes

The OBC information is displayed in the display field of the remote cluster, regardless of whether it is the Tachometer or speedometer.

The following information is displayed:

The values are scrolled through using the OBC switch on the main beam/indicator stalk.

Pressing the switch for longer than one second performs a reset of the average consumption or average speed when displayed.

Fig 1: Ambient Temperature Display

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Average Speed Display

Courtesy of BMW OF NORTH AMERICA, INC.

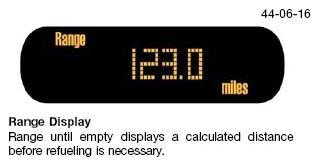

Fig 3: Range Display

Courtesy of BMW OF NORTH AMERICA, INC.

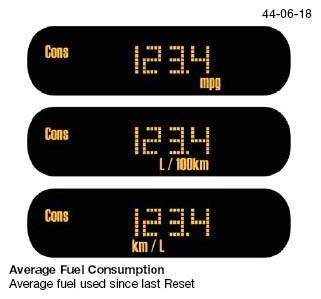

Fig 4: Average Fuel Consumption Display

Courtesy of BMW OF NORTH AMERICA, INC.
