Notes
Component Locations: Notes

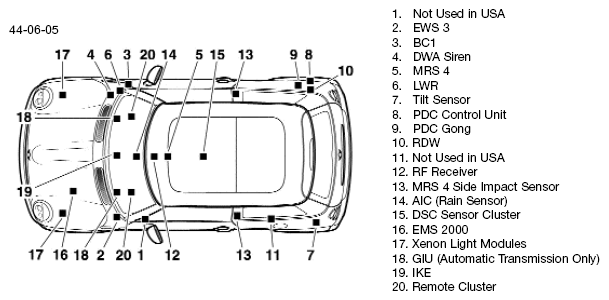

Fig 1: Identifying Ground System Components Location
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
