12 41 041 Replacing solenoid switch

Turn off ignition.

Remove starter motor.

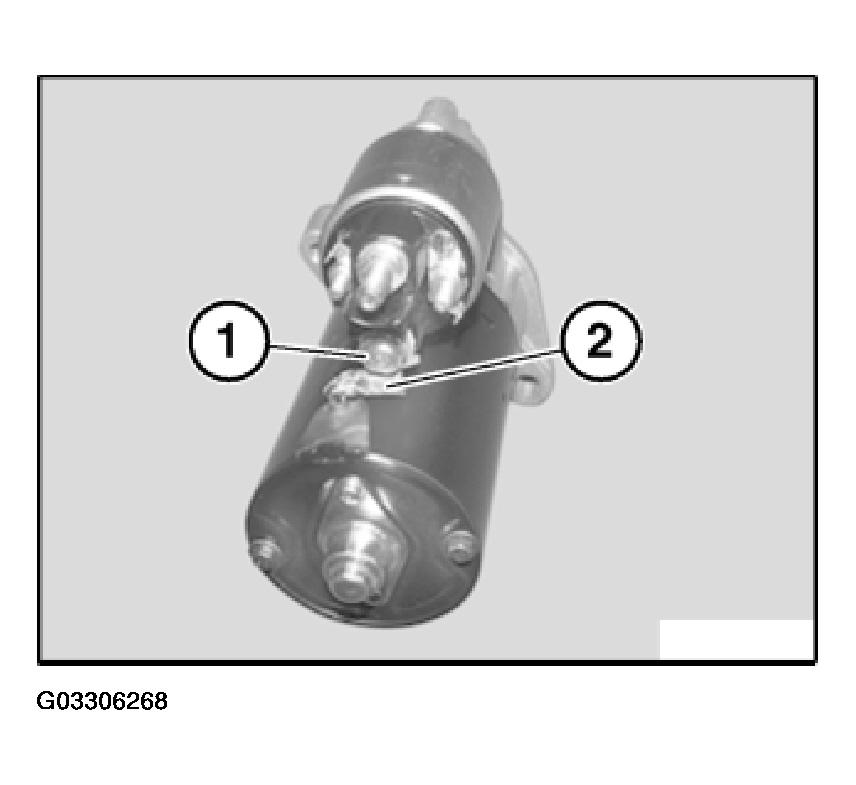

Release nut (1).

Remove cable lug (2).

Fig 1: Locating Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing. Tightening torque, 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

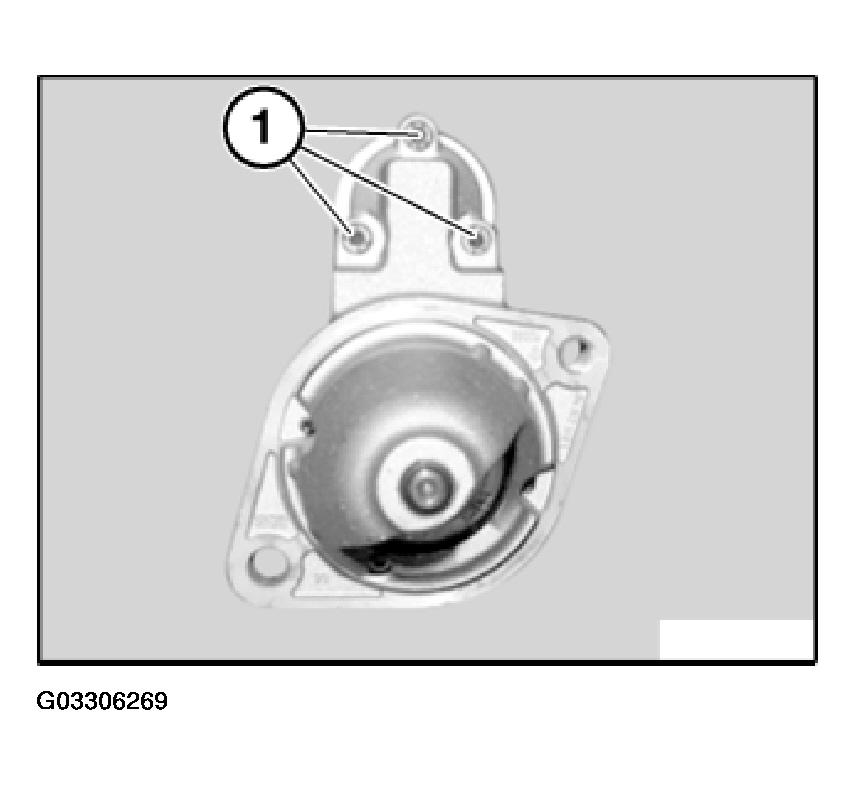

Release screws (1).

Fig 2: Identifying Switch Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

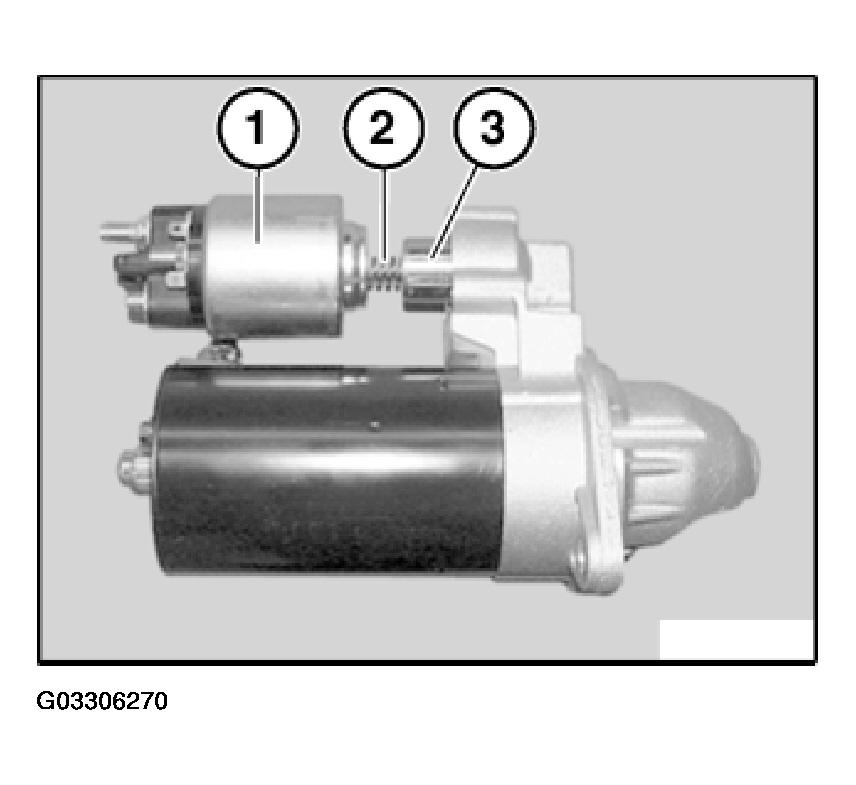

Remove solenoid switch (1) and spring (2).

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.

Fig 3: Removing Solenoid Switch And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
