Replacing the Battery
- Switch off power and undock control panel.

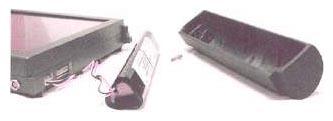

- Remove screw on right hand handle.
- Pull off handle.
- Remove battery.
- Press down on the retainer for the connector and carefully remove connector.
- Connect new battery.
- Insert new battery in handle.
- Reinstall handle on control panel.
- Completely charge new battery.
