Service Interval Data (SIA): Notes

The IKE sends this information when it has changed from the previous stored value. This information will be stored if it is a greater value than the value stored. The IKE sends this information each time the ignition is turned on.

The SIA display is the means by which the vehicle owner is informed of impending or overdue vehicle services. The display must be able to show the following information:

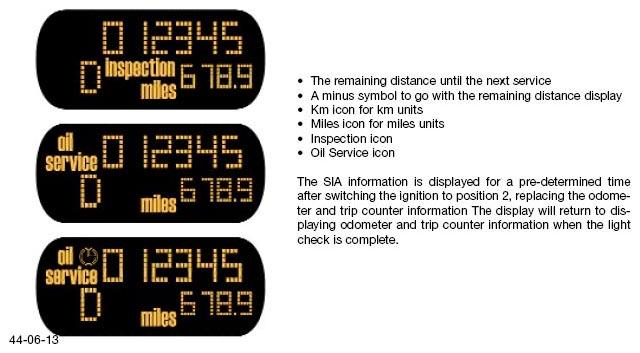

Fig 1: Display SIA Display Information
G04724950Courtesy of BMW OF NORTH AMERICA, INC.
