DVOM - Overview
›
Mini DVOM
›
Mini DVOM
›
Testing Circuits
›
Circuit 3
Circuit 3

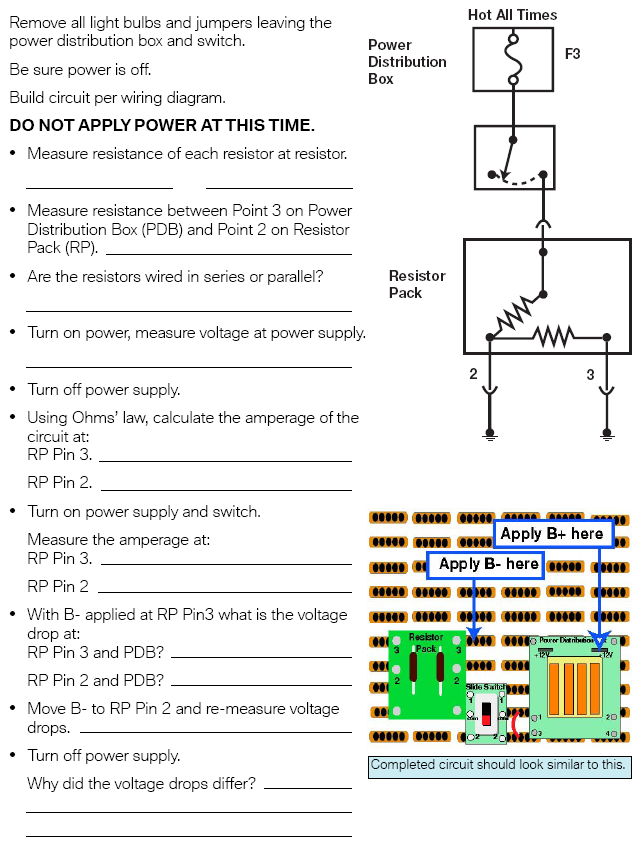

Fig 1: Testing Circuits - Circuit 3
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
