Switch Panel (IHKS): Notes

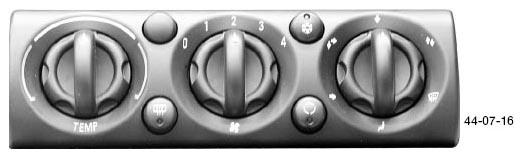

The IHKS system uses three rotary control knobs for temperature, blower speed and air distribution control. The system has a recirculation function and may have the heated front screen as an option with the switch located in the blank above the heated rear window switch. The IHKS system also requests compressor activation from the BC1.
