System Components: Receiver/Drier

A receiver/drier integrated in the condenser assembly removes moisture and solid impurities from the refrigerant, and provides a reservoir of liquid refrigerant to accommodate flow changes at the evaporator.

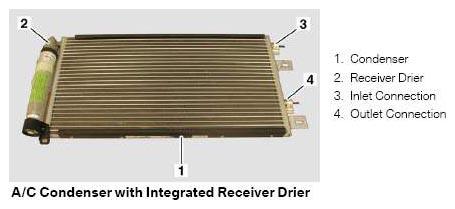

Fig 1: A/C Condenser With Integrated Receiver/Drier

Courtesy of BMW OF NORTH AMERICA, INC.
