Generator Specifications

GENERATOR SPECIFICATIONS

Application		Specification
Amperage		120 Amps
Brush Length (1)		.20" (5 mm)
Voltage		13.2-15.0 Volts
(1) See Fig 1 .

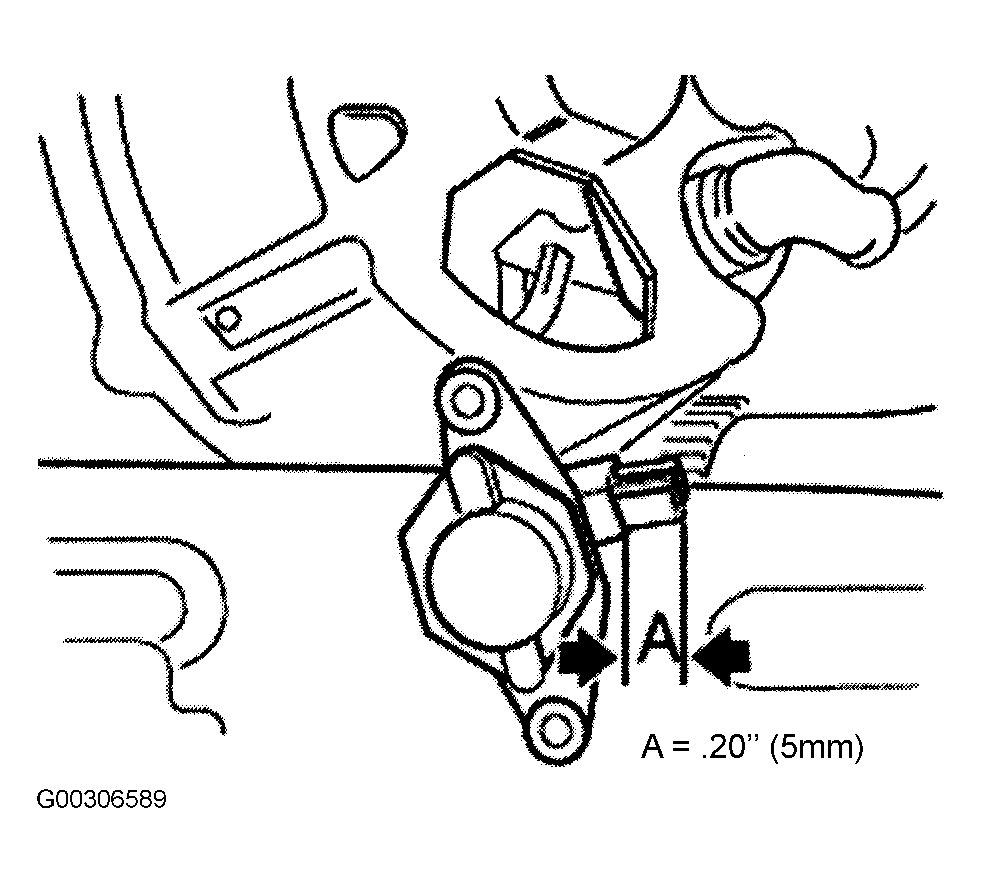

Fig 1: Identifying Brush Length

Courtesy of BMW OF NORTH AMERICA, INC.
