Mode 6 - 2003
Mode 6 - 2003

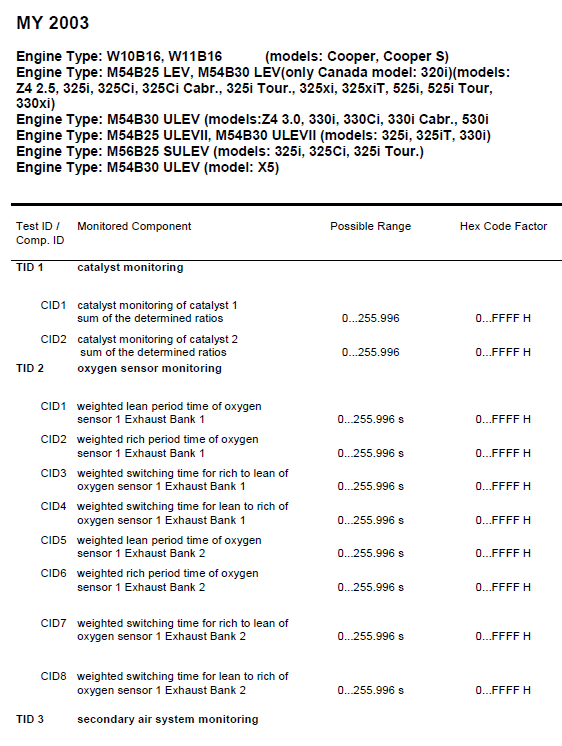

Fig 1: MINI Mode 6 Data (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

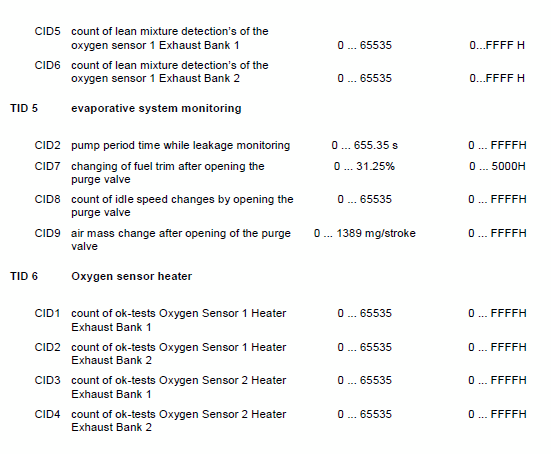

Fig 2: MINI Mode 6 Data (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
