Statistics: Fault Processing
Statistics: Fault Processing
For one driving cycle.

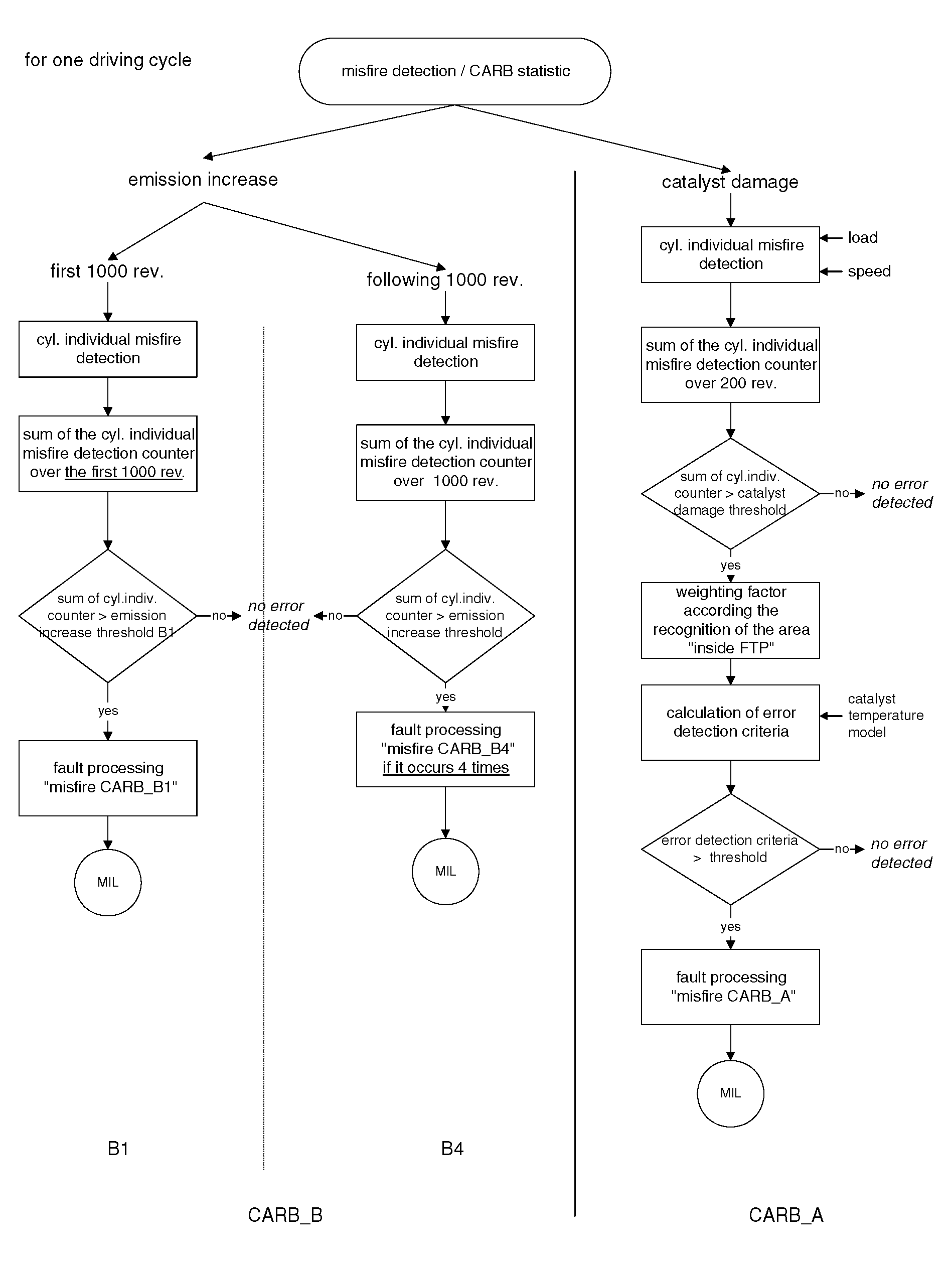

Fig 1: Flow Chart - Fault Processing
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
