Mini DVOM
›
Mini DVOM
›
Testing Circuits
›
Circuit 2
Circuit 2

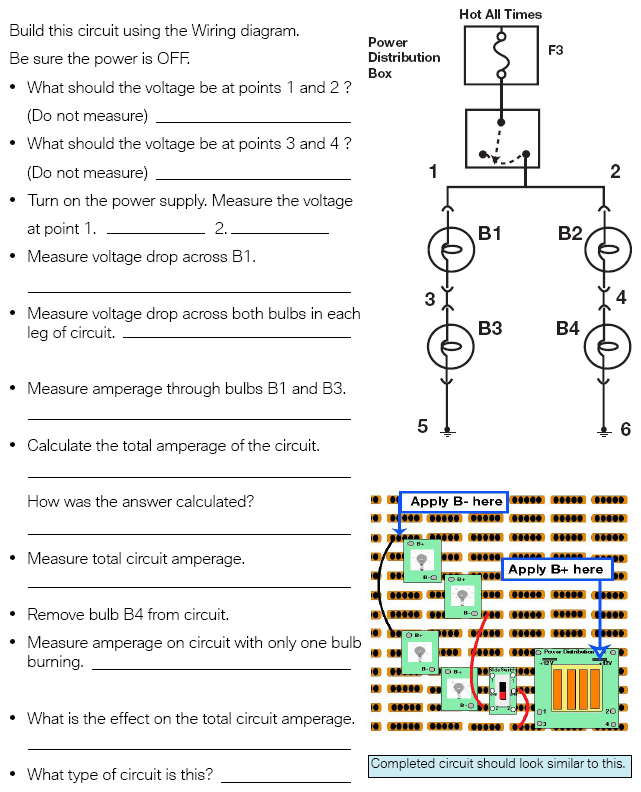

Fig 1: Testing Circuits - Circuit 2
Courtesy of BMW OF NORTH AMERICA, INC.
