31.... Front axle overview

WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

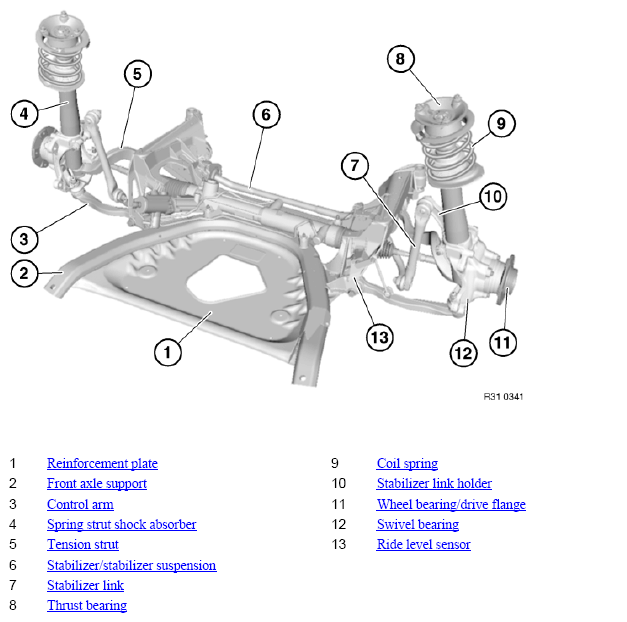

Fig 1: Identifying Suspension Systems Components

Courtesy of BMW OF NORTH AMERICA, INC.
