Pin Removal Tool (M04 01 07)

Publication date: 2007-02-01
Reference number: M04 01 07

PIN REMOVAL TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 01 07, Date of Issue: February 1, 2007

MINI:	All
GROUP:	Tools and Equipment

Pin Removal Tool

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

PIN REMOVAL TOOL

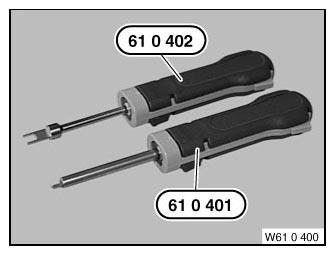

Release tool set for N12 and N14 engine

Order PN 83 30 0 495 408

Cartool PN 610 400

Consisting of:

Release tool 61 0 401 for secondary lock

Before using the release tools, the housing must be checked for a secondary lock.

Special tool 61 0 401 is needed for the secondary lock on the "Sicma" housing.

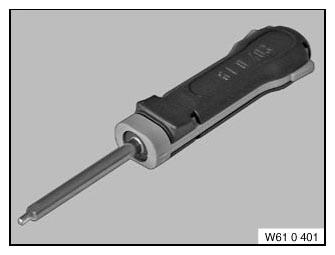

Fig 2: Release Tool For Secondary Lock

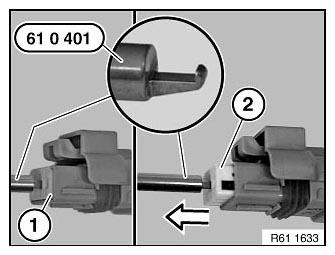

Insert special tool 61 0 401 into housing (1) making sure to hook the tool in place.

NOTE: Align the tool centrally on multipin housings.

Pull the tool in the direction of the arrow until the secondary lock (2) is released.

Fig 3: Inserting Release Tool Into Secondary Lock Housing

Release tool 61 0 402 for "Sicma 2.8mm" contacts

The new release tools from this set are manufactured precisely according to the specifications of the contact manufacturer.

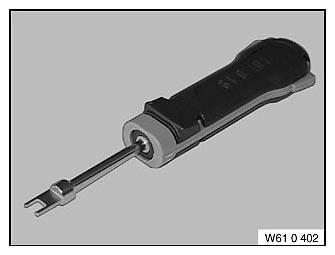

Fig 4: Release Tool For "Sicma" Contacts

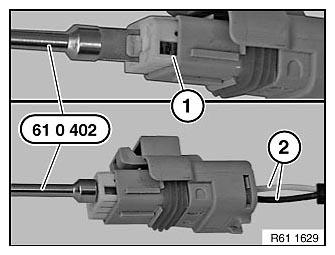

After releasing the secondary lock, insert tool 61 0 402 into the housing (1).

Before releasing, press the wire concerned towards the housing so that the retaining tabs on the contact are released from the housing.

Push tool 61 0 402 into the housing to the stop and release the contact. Pull the wire concerned (2) out of the housing with the contact.

Fig 5: Inserting Release Tool Into Lock Housing
