Special Tools (M04 03 07)

Publication date: 2007-02-23
Reference number: M04 03 07

SPECIAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 03 07, Date of Issue: February 23, 2007

MINI:	R56
GROUP:	Tools and Equipment

Special Tools

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

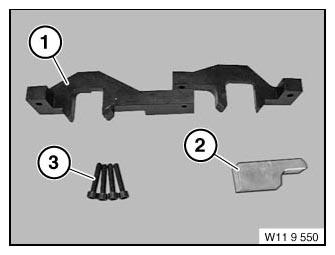

Gauge Tool for fixing camshaft in TDC (N14)

ORDER PN 83 30 0 495 926

Cartool PN 11 9 550

Fig 1: Gauge Tool For Fixing Camshaft In TDC (N14)

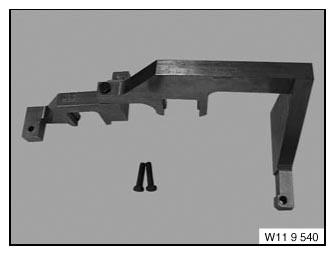

Gauge Tool for fixing camshaft in TDC (N12).

ORDER PN 83 30 0 495 925

Cartool PN 11 9 540

Fig 2: Gauge Tool For Fixing Camshaft In TDC (N12)

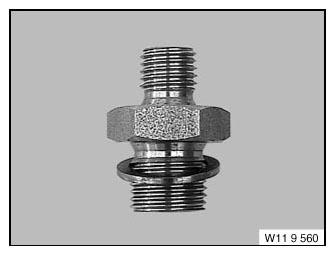

Adapter for checking oil pressure

ORDER PN 83 30 0 495 927

Cartool PN 11 9 560

Fig 3: Adapter For Checking Oil Pressure

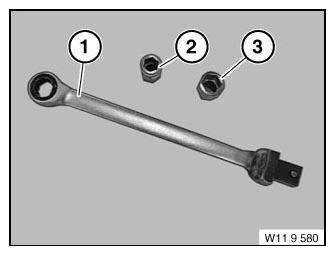

Ring Spanner with WAF 8 and WAF 10 bit for use in removing and installing friction wheel and auxiliary water pump.

ORDER PN 83 30 0 495 932

Cartool PN 11 9 580

Fig 4: Ring Spanner With WAF 8 And WAF 10

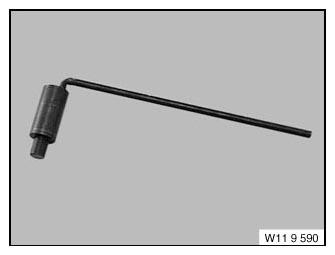

Alignment Pin for fixing crankshaft in TDC

ORDER PN 83 30 0 495 939

Cartool PN 11 9 590

Fig 5: Alignment Pin For Fixing Crankshaft In TDC

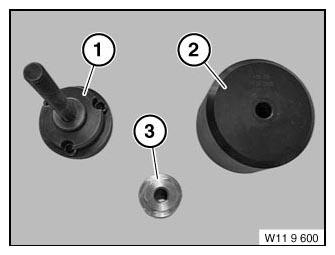

Assembly tool for fitting front radial shaft seal on crankshaft

ORDER PN 83 30 0 495 940

Cartool PN 11 9 600

Consists of :

11 9 601 Basic tool
11 9 602 Pressure collar
11 9 603 Nut with bearing

Fig 6: Assembly Tool For Fitting Front Radial Shaft Seal On Crankshaft

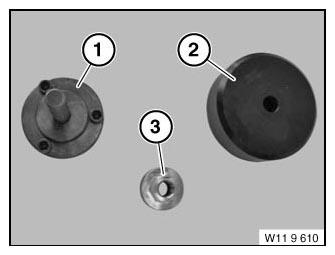

Assembly tool for fitting rear radial shaft on crankshaft

ORDER PN 83 30 0 495 944

Cartool PN 11 9 610

Fig 7: Assembling Tool For Fitting Rear Radial Shaft On Crankshaft

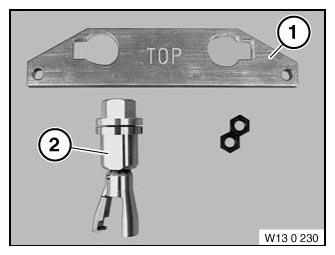

Removal Tool for removing seized fuel injectors (N14)

ORDER PN 83 30 0 495 965

Cartool PN 13 0 230

Fig 8: Removal Tool For Removing Seized Fuel Injector

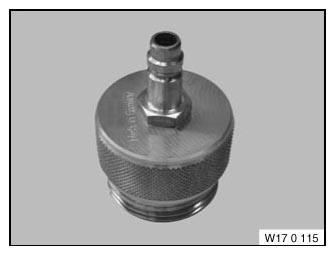

Adapter for testing function of radiator cap

ORDER PN 83 30 0 495 889

Cartool PN 17 0 115

Fig 9: Adapter For Testing Function Of Radiator Cap
