General Electrical System - Repair - Convertible (R57)
›
Control Units, Modules
›
61 35.. Overview of control units
61 35.. Overview of control units

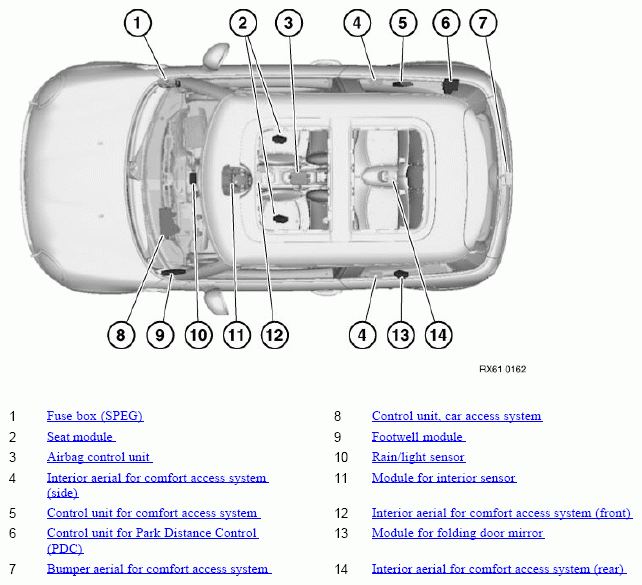

Fig 1: Identifying Control Units Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
