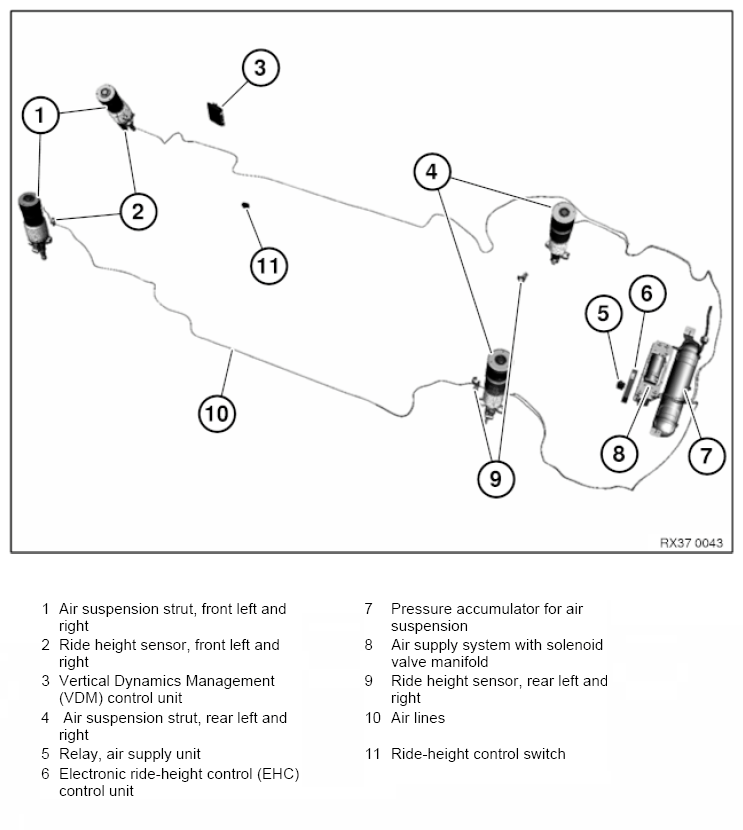

37... Overview of 2-axle ride-height control
WARNING: This page is about a different variant/trim than selected.
Safety instructions & general information
Deactivate/activate air spring system
Bleed/fill pressure accumulator Carry out ride height adjustment
- Air suspension strut, front left and right
- Ride height sensor, front left and right
- Vertical Dynamics Management (VDM) control unit
- Air suspension strut, rear left and right
- Relay, air supply unit
- Electronic ride-height control (EHC) control unit
- Pressure accumulator for air suspension
- Air supply system with solenoid valve manifold
- Ride height sensor, rear left and right
- Air lines
- Ride-height control switch
