Section 161 (Suspension - Front): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

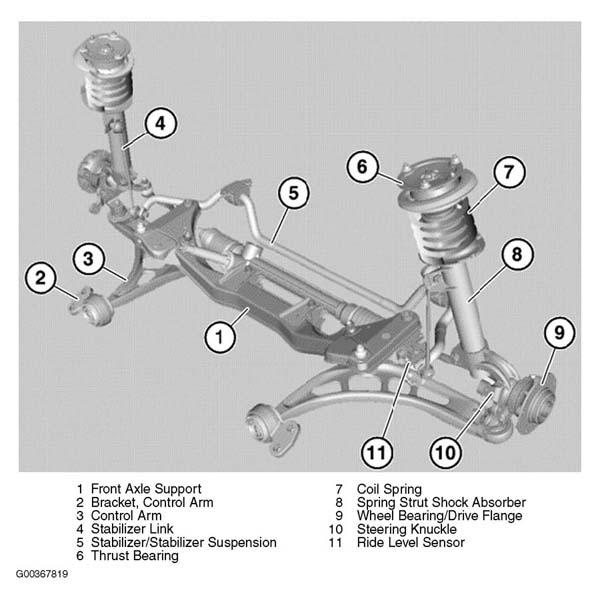

All BMW models use MacPherson strut front suspension systems, which consist of vertically mounted strut assemblies directly attached to steering knuckles. Steering knuckles are connected to the axle carriers (crossmembers) through lower control arms. A stabilizer bar is attached to either the strut assembly or the lower control arm. See Fig 1 .
