00 ... ... Lifting Vehicle With A Lifting Platform
WARNING: This page is about a different car, the 2008 BMW Alpina, 2008 BMW 750i, 2007 BMW Alpina, 2007 BMW 750i, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger to life!
Read and follow operating instructions for lifting platform.
Do not exceed carrying capacity of lifting platform.
Read and follow operating instructions for lifting platform.
Do not exceed carrying capacity of lifting platform.
NOTE:
The lifting platform must comply with the relevant statutory accident prevention regulations and be serviced according to the manufacturer's instructions.
IMPORTANT:
Risk of damage!
Before driving onto a lifting platform, make sure there is sufficient ground clearance between the lifting platform and the car.
The vehicle may only be raised with the lifting platform at the four jacking points.
Before driving onto a lifting platform, make sure there is sufficient ground clearance between the lifting platform and the car.
The vehicle may only be raised with the lifting platform at the four jacking points.
Necessary preliminary tasks:
- If necessary, remove jacking points from equipment pack and insert from below into openings in front and rear sill areas
IMPORTANT:
Risk of damage!

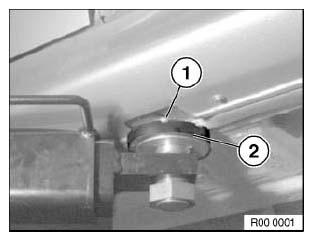

Align support plates (2) of lifting platform arms to jacking points (1) in such a way that no adjoining components are touched and thereby damaged.
Align support plates (2) of lifting platform arms to jacking points (1) in such a way that no adjoining components are touched and thereby damaged.
