61 11... Installing The Positive Battery Terminal Repair Cable
Special tools required: 61 0 202, 0 444 131
The repair instructions describe how to install the positive battery terminal repair cable (BMW Parts Department 9 283 498).
Necessary preliminary work: Disconnect the battery . Remove the cover for the carbon canister if required. See 51 71... REMOVING AND INSTALLING/REPLACING COVER FOR CARBON CANISTER .
Work is shown on the E82 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

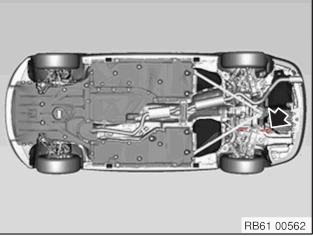

The positive battery cable is fitted at the position marked with an arrow.

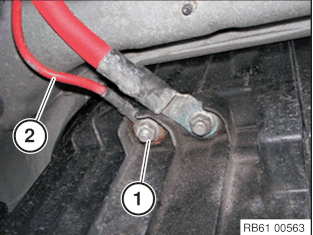

Undo both nuts (tightening torque: 15 Nm). Remove both positive battery cables.
Installation note:
Before fastening the screw connection after repair work, clean both threaded bolts and the cable shoe of the thick positive battery cable, e.g. with brake cleaner.
Generously grease the cable shoe of both the repaired positive battery cable and the thick positive battery cable on both sides.
Do not fasten the two cable shoes to the threaded bolt using the nuts until the greasing work is complete.
After installation, also generously grease the two nuts and the threaded bolt.

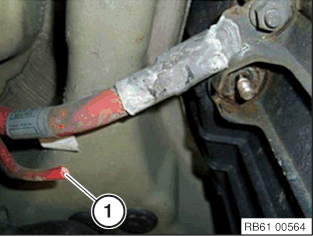

Measure out and mark a length of 100 mm on the positive battery cable (1). Cut the positive battery cable (1) at the mark.

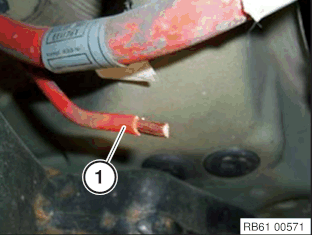

Measure out and mark a length of 12 mm on the positive battery cable (1). Strip the insulation from the positive battery cable (1) at the mark.

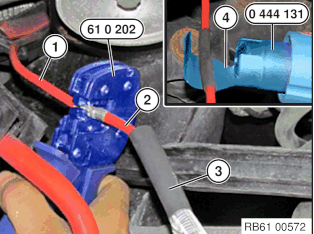

Attach the heat-shrink tubing (3) to the positive battery terminal repair cable (2). Crimp the vehicle-side positive battery cable (1) and the positive battery terminal repair cable (2) using special tool 61 0 202.
Position the heat-shrink tubing (3) centrally over the crimping point. Shrink the heat-shrink tubing (3) with a hot air blower 0 444 131 at 400 °C. Use a heat-shrink tubing reflector (4)!
