61 00... Diagnosis for Condition Based Service: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Red symbol for pre-delivery check
The vehicle is coded at the end of the assembly line so that the red symbol for the pre-delivery check is shown in the Next Service display (same symbol as vehicle check).
The symbol is a reminder to the Service staff that the predelivery check has not yet been carried out on this car.
NOTE:
Do not carry out a reset.
Do not confuse this function with the "Vehicle check" maintenance scope.
Do not carry out a reset via the instrument cluster.
When carrying out the pre-delivery check with the "TRANSPORT MODE/PRE-DELIVERY CHECK " service function:
The symbol is automatically removed from the display after the service function has been executed.

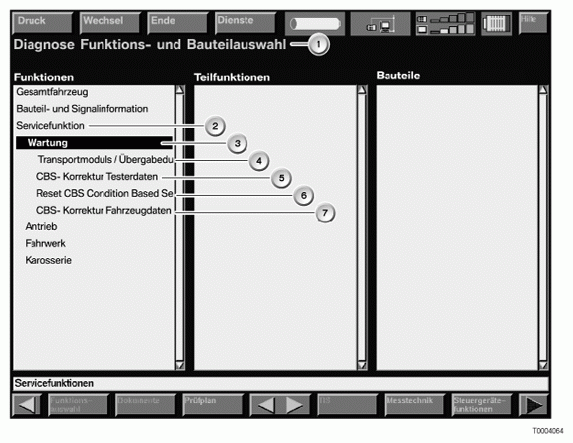

SERVICE FUNCTION TABLE
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Function and component selection | 2 | Service functions |
| 3 | Maintenance | 4 | Transport Mode/Pre-delivery check |
| 5 | CBS Correction Tester Data | 6 | Reset CBS Condition Based Service |
| 7 | CBS Correction Vehicle Data | - | - |
4 service functions are available in the BMW diagnosis system for maintenance:
- Transport Mode/Pre-delivery check
- CBS Correction Tester Data
- Reset CBS
- CBS Correction Vehicle Data
