Section 3061 (Rear Axle - Repair - E90)
›
General
›
33 32... Overview of steering links
33 32... Overview of steering links
WARNING:
This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

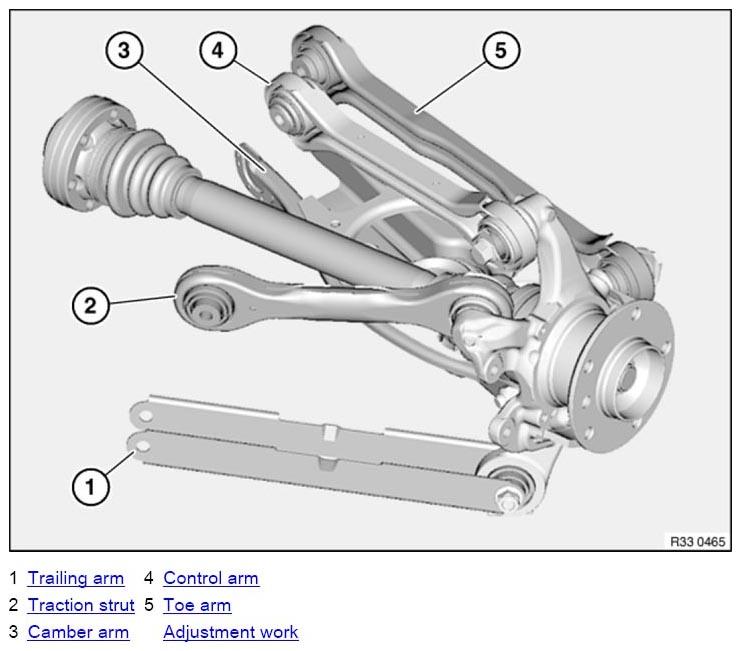

Fig 1: Overview Of Steering Links
Courtesy of BMW OF NORTH AMERICA, INC.
Trailing arm
Traction strut
Camber arm
Control arm
Toe arm Adjustment work
