86 10... Replacing bar

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Disassembly of lashing eyes,
REFER TO 86 10... REPLACING LASHING PLATE AND LASHING EYE.

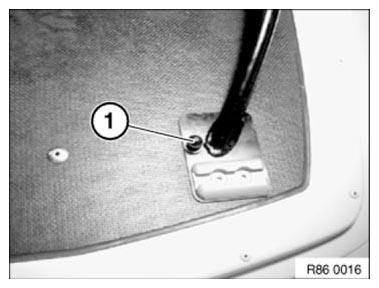

Remove lashing eyes (1).

Fig 1: Identifying Lashing Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective caps (1) on left/right.

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon screws (1) and countersunk head screws (2) on left/right.

Remove bar.

Installation

Tightening Torque for hexagon screw,

Refer to TIGHTENING TORQUE 86 10 2AZ.

Tightening Torque for countersunk head screw,

Refer to TIGHTENING TORQUE 86 10 3AZ.

Fig 3: Identifying Hexagon Screw And Countersunk Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.
