33 32 153 Removing and installing/replacing front compression strut
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without compression struts is not permitted!
Driving without compression struts is not permitted!
Necessary preliminary tasks
- REMOVE TRAILING LINK TO REAR AXLE. (F07/F11/F12)

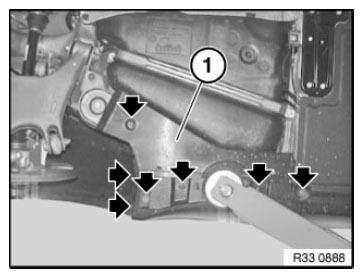

Release screws of underbody panelling (1).
Remove underbody panelling (1).
Release screws (1).
Tightening torque 33 33 2AZ .
Release screw (2) and remove compression strut (3).
Tightening torque 33 33 1AZ .
IMPORTANT:
Secure rear axle support by inserting screw (2).
Installation note:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS.
