41 00... Reinforcement Plate (Bonded): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.
A reinforcement plate is bonded in to ensure sufficient strength.
Observe notes on REPAIR STAGE 2 .
NOTE:
The following graphics serve as general illustrations of reinforcement plate repair work. They apply to sectional repairs to the structure.

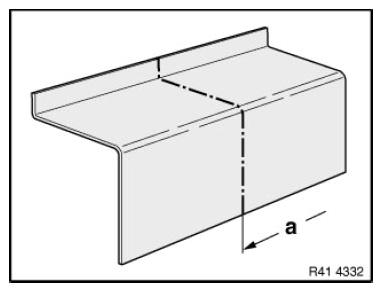

Mark component in accordance with measurement a and cut.
