41 00... Use Of Materials In Outer Skin
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

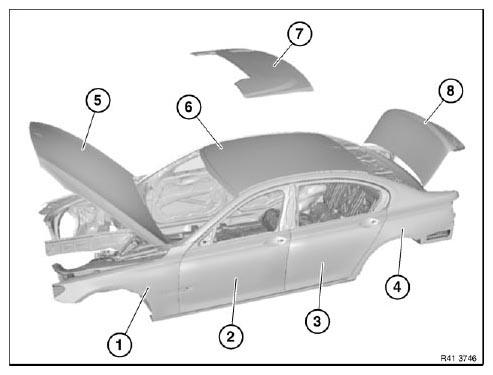

The following illustration is a schematic diagram of all the body variants.
Apply this illustration to the relevant vehicle.
All components not listed in the table below are composed of established sheet steel qualities.
| Component | Vehicle | Material |
|---|---|---|
| (1) Side wall, front | F01, F02, F04, F10, F11 | Aluminum |
| F12, F13, F06 | Plastic (thermoplastic) | |
| (2) Front door | F01, F02, F04, F06, F07, F10, F11, F12, F13 | Aluminum |
| (3) Rear door | F01, F02, F04, F06, F07, F10, F11 | Aluminum |
| (5) Engine compartment lid | F01, F02, F04, F06, F07, F10, F11, F12, F13 | Aluminum |
| (6) Hardtop/roof | F01, F02, F04 | Aluminum |
| (7) Soft top compartment lid | F12 | Plastic (thermoplastic) |
| (8) Tailgate | F07 | Aluminum |
| F06, F12, F13, | Plastic (thermoplastic) |
