11-9000 Device

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

0494362 119000 Device Minimum set: Mechanical tools MW

NOTE: (Cylinder head clamping device) [Released]

Storage Location

Individual

SI number

01 03 02 (833)

Consisting of:

= 0494366 Device
NOTE: [Released]

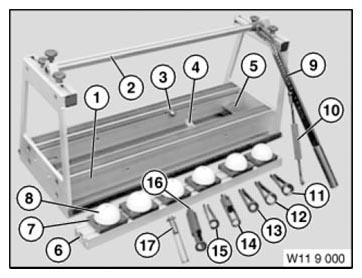

Fig 1: Identifying Device (0494362)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0494367 Rod
NOTE: [Released]
= 0494368 Adapter
NOTE: (Sliding block) [Released]
= 0494369 Tab
NOTE: [Released]
= 0494370 Quick fastener
NOTE: [Released]
= 0494371 Insert
NOTE: (Aluminum strip) [Released]
= 0494372 Shaped part
NOTE: (Shaped part) [Replaced]
= 0494373 Shaped part
NOTE: (Shaped part) Shaped part made of plastic [Released]
= 0494374 Lever
NOTE: [Released]
= 0494375 Hook
NOTE: [Released]
= 0494376 Basket
NOTE: (Valve spring cage) Engine M41, M51, S50 [Released]
= 0494377 Basket
NOTE: (Valve spring cage) Engine M43, M73 [Released]
= 0494378 Basket
NOTE: (Valve spring cage) Engine M44, M52, M54, M56, M62, S52, S54, S62 [Released]
= 0494379 Basket
NOTE: (Valve spring cage) Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73 [Released]
= 0494380 Basket
NOTE: (Valve spring cage) Engine M21, M40 [Released]

17 = 0495028 Basket
NOTE: (Valve spring cage) Engine N52 [Released]
