11-0160 Compression tester

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0490593 110160 Compression tester MW

Replaced by: 0490613

NOTE: (Compression recorder) manufacturer VDO - Replaced by 11 0 220 (0 490 613) [replaced]

Consisting of:

= 0490594 Card
NOTE: (Cards) For compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613) [replaced]
= 0490595 Pressure gauge
NOTE: Compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613) [replaced]
= 0490596 Guard
NOTE: (Rubber protection) Still available as replacement Discontinuation and replaced by 11 0 220 (0 490 613) [replaced]

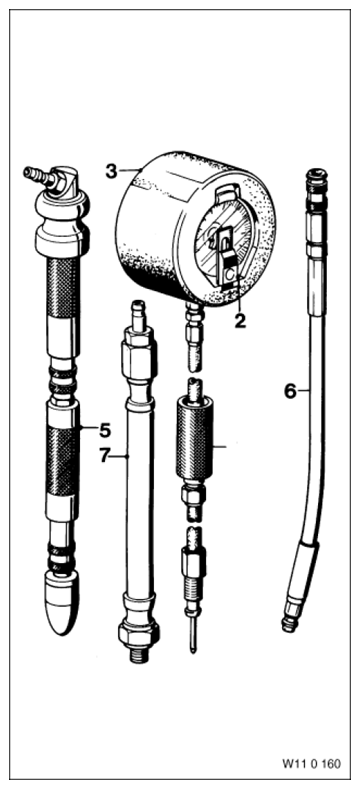

Fig 1: Identifying Compression Tester (0490593)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0490597 Line
NOTE: Discontinued and replaced by 11 0 220. (0 490 613) [replaced]
= 0490598 Adapter
NOTE: (test adapter for gasoline engine: all, except M70 Discontinued and replaced by 11 0 220 (0 490 613) [replaced]
= 0490599 Adapter
NOTE: (test adapter for gasoline engine: M70 Discontinued and replaced by 11 0 220 (0 490 613) [replaced]
= 0490600 Adapter
NOTE: (Test adapter extension) Discontinuation and replaced by 11 0 220 (0 490 613) [replaced]
