11-0220 Compression tester

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0490613 110220 Compression tester Minimum set: Mechanical tools MW

NOTE: (compression pressure testing set) For all gasoline and diesel engines. [Released]

SI number: 01 09 92 (558)

Consisting of:

  1. 2 = 0493634 Case

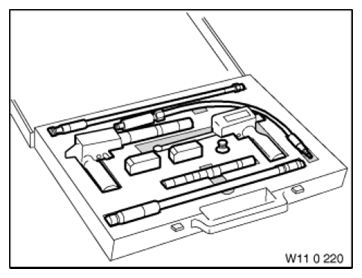

    Fig 1: Identifying Compression Tester (0490613)
    G08464199Courtesy of BMW OF NORTH AMERICA, INC.
    NOTE: With foam insert for recording compression tester [released]
  2. 4 = 0490614 Compression tester
    NOTE: (Compression tester) For diesel engines [released]
  3. 4 = 0490615 Sensor
    NOTE: (Test probe) For recording compression testers 11 0 221 and 11 0 160 / engine: M21, M41, M47, M51, M57, M57T2 [released]
  4. 4 = 0490617 Compression tester
    NOTE: (Compression tester) For gasoline engines. [Released]
  5. 4 = 0490618 Hose
    NOTE: (Extension hose) For rubber tapered section with fitting 11 0 228 [discontinued]
  6. 4 = 0490619 Sensor
    NOTE: (Test probe) For recording compression testers 11 0 224 and 11 0 160 / engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, N62, S50US, S52US, S62 [released]
  7. 4 = 0490621 Tapered section
    NOTE: (Rubber tapered section) For recording compression testers 11 0 224 and 11 0 160. [Released]
  8. 4 = 0490625 Valve
    NOTE: (Non-return valve) [released]
  9. 4 = 0490626 Filter
    NOTE: (Filter) 3 x 3 mm [released]
  10. 9 = 0493129 Sensor
    NOTE: (Test probe, screw-in) For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54, S85 [released]
  11. 2 = 0493387 Sensor
    NOTE: (Test probe) For recording compression tester 11 0 221 or DIS pressure sensor / engine: M47, M57, M57TU, M57T2 [Released]
  12. 4 = 0490620 Sensor
    NOTE: (Test probe) For recording compression testers 11 0 224 and 11 0 160 / engine: S14, S38, S50 - Replaced by 11 0 235 (0 493 129) [replaced]
  13. 4 = 0490616 Card
    NOTE: (Cards) 100 pieces For recording compression tester 11 0 221 [released]
  14. 2 = 0494517 Adapter
    NOTE: Measuring "absolute compression" at all cylinders. Engine: W17 [Released]
  15. 4 = 0490622 Card
    NOTE: (Cards) 100 pieces For recording compression tester 11 0 224 [released]
  16. 16 = 0495279 Adapter
    NOTE: Engine M67, M67TU [released]
