11-6110 Tool set

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0495274 116110 Tool set MW

NOTE: (Tool set) For removal and installation of gudgeon pin circlamps. [Released]

Storage Location: C52

SI number: 01 05 05 (180)

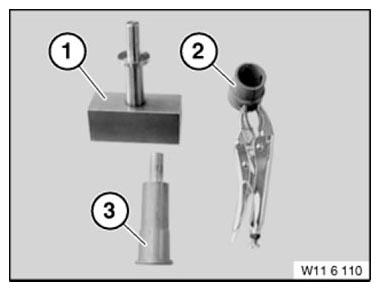

Fig 1: Identifying Tool Set (0495274)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

= 0495275 Holder
NOTE: (Assembly holder) Not available individually, but as part of set 11 6 110 (0495274) only. [Not available separately]
= 0495276 Pliers
NOTE: (Assembly pliers) Not available individually, but as part of set 11 6 110 (0495274) only. [Not available separately]
= 0495277 Mandrel
NOTE: (Assembly mandrel) Remaining inventories will be sold off, followed by discontinuation and then not available individually, but as part of set 11 6 110 (0495274) only. [Not available separately]
