11-7040 Device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0495456 117040 Device MW

NOTE: (Pressure testing fixture) For sealing coolant openings when pressure-testing cylinder head on watertightness. [Released]

SI number: 01 14 05 (198)

Consisting of:

= 0495463 Plate

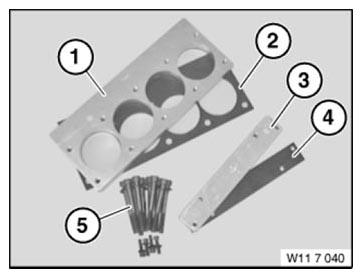

Fig 1: Identifying Device (0495456)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Adapter plate (large) with gasket) Discontinued, only available via complete tool [Not available separately]
= 0495464 Gasket
NOTE: (Gasket for 11 7 041) Discontinued, only available via complete tool [Not available separately]
= 0495465 Plate
NOTE: (Adapter plate (small) with gasket) Discontinued, only available via complete tool [Not available separately]
= 0495466 Gasket
NOTE: (Gasket for 11 7 043) Discontinued, only available via complete tool [Not available separately]
= 0495467 Screw
NOTE: (Set - screws) Discontinued, only available via complete tool [Not available separately]
