63 11... Installing headlight repair kit
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove headlight. See 63 12 012 Removing and installing (replacing) the right headlight (Xenon) , 63 12 010 Removing and installing (replacing) left (Xenon) headlight , 63 12 015 Removing and installing (replacing) left headlight (adaptive headlight) , or 63 12 017 Removing and installing (replacing) right headlight (adaptive headlight) .
NOTE:

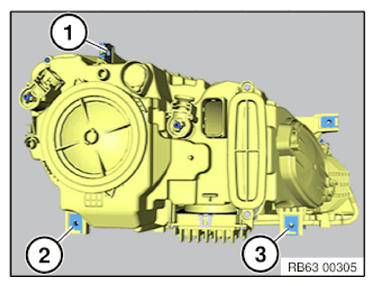

Damaged holders (1, 2, 3) can be replaced with the repair kit.
Replacement of headlight is not required!
Replacement of headlight is not required!

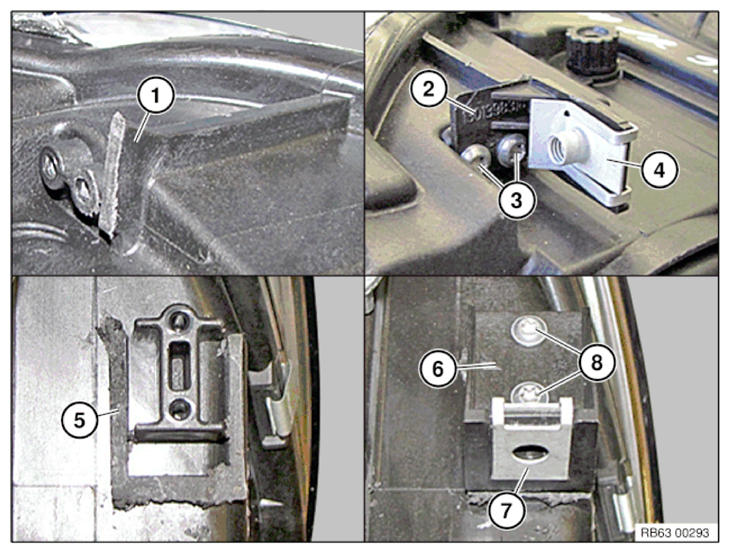

Holder 1 from first image:
Remove the damaged holder (1) as shown.
Fit holder from repair kit (2) and secure with screws (3).
Slide clamp (4) onto holder (2).
Holders 2 and 3 from the first image:
Remove the damaged holder (5) as shown.
Fit holder from repair kit (6) and secure with screws (8).
Slide clamp (7) onto holder (6).
After installation:
