63 11... Replace left turn indicator LED module

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wheel arch cover (front section). See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .

NOTE: For a better overview the removed condition is shown here.

Release screws (1).

Tightening torque 63 11 2AZ .

Remove LED module (2).

Fig 1: Identifying LED Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Remove LED module (2).

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Gasket (3) on LED module (2) must not be damaged or missing.

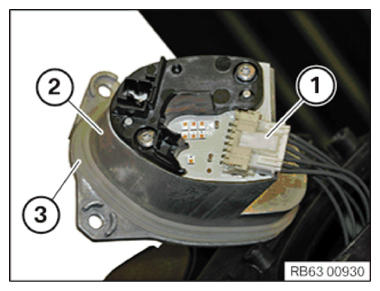

Fig 2: Identifying LED Module Gasket And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
