Brake light switch
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Two Hall effect sensors as switches are installed in the brake light switch:
- Brake lamp switch
- Brake light test switch (redundancy).
The signals indicate whether the brake pedal has been pressed. The data interchange is digital.
The brake-light switch has no moving parts and works as a non-contact switch. A change in the switching state is achieved by removing or applying a ferromagnetic trigger element to the brake pedal.
Switching mode with brake not applied:
- Brake light switch output conductive
- Brake light test switch output blocking.

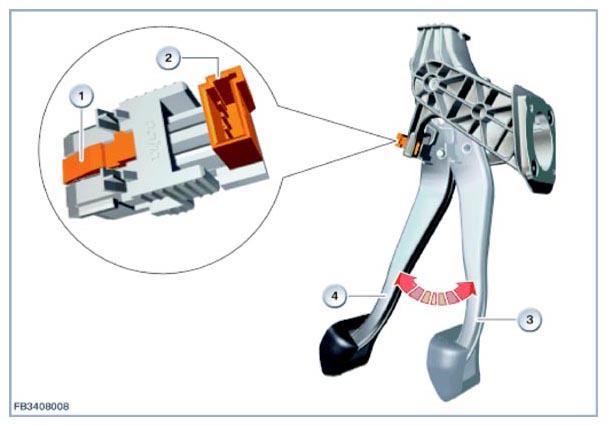

| Index | Explanation |
|---|---|
| 1 | Brake light switch |
| 2 | 4-pin plug connection |
| 3 | Brake pedal pressed |
| 4 | Brake pedal not pressed |
The two redundant signals from the brake light switch are forwarded for example to the Digital Engine Electronics (DME).
The signals from the brake light switch are also evaluated for the following functions:
- Reversing lamps
- Brake intervention.
