Clutch module

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with manual gearboxes, the clutch module at the clutch pedal picks up the clutch position:

Clutch pressed: clutch switch open
Clutch not pressed: clutch switch closed.

The clutch module comprises the clutch switch and evaluation electronics.

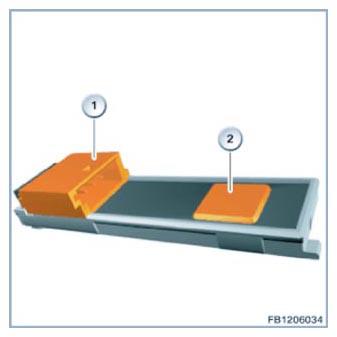

Fig 1: Identifying Clutch Pedal Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	4-pin plug connection
2	Clutch pedal sensor

Among other things, the Digital Engine Electronics (DME) has a signal line. When the clutch pedal is not pressed, the clutch module delivers 12 Volts and when the clutch pedal is pressed it delivers 0 Volts.

The clutch module is used as an input signal for the automatic engine start-stop. Two states are picked up:

10 percent operated
90 percent operated.

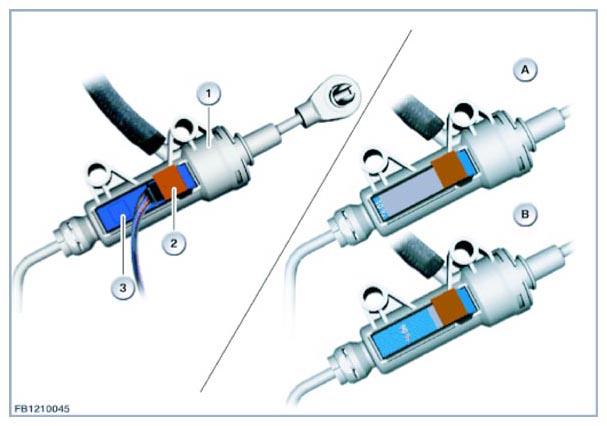

Fig 2: Identifying Clutch Module, 4-Pin Plug Connection And Clutch Pedal Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
A	Clutch pedal 10% operated
B	Clutch pedal 90% operated
1	Clutch module
2	4-pin plug connection
3	Clutch pedal sensor
