13 00 002 Checking function of Digital Engine Electronics (DME)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

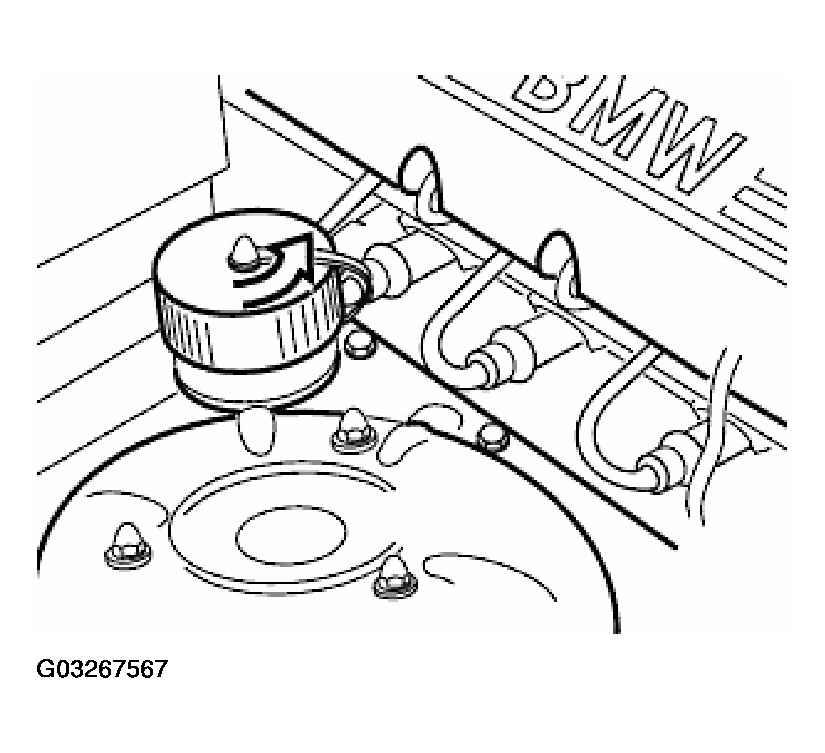

Fig 1: Connecting Up Modic Or BMW DIS

Courtesy of BMW OF NORTH AMERICA, INC.

OBD socket (1) in driver's footwell:

Same procedure as above.

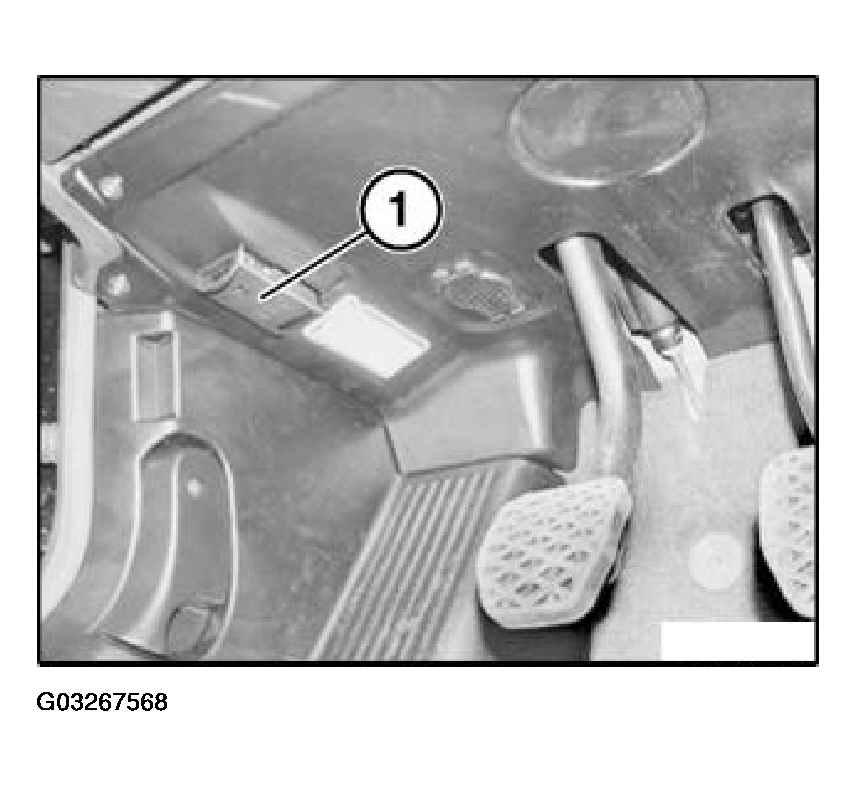

Fig 2: Identifying OBD Socket In Driver Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
