Special Tools

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 530i, 2002 BMW 525i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pictures of special tools not shown, are not available from BMW.

Fig 1: Identifying Cross Member (00 0 200)

G00157849

Courtesy of BMW OF NORTH AMERICA, INC.

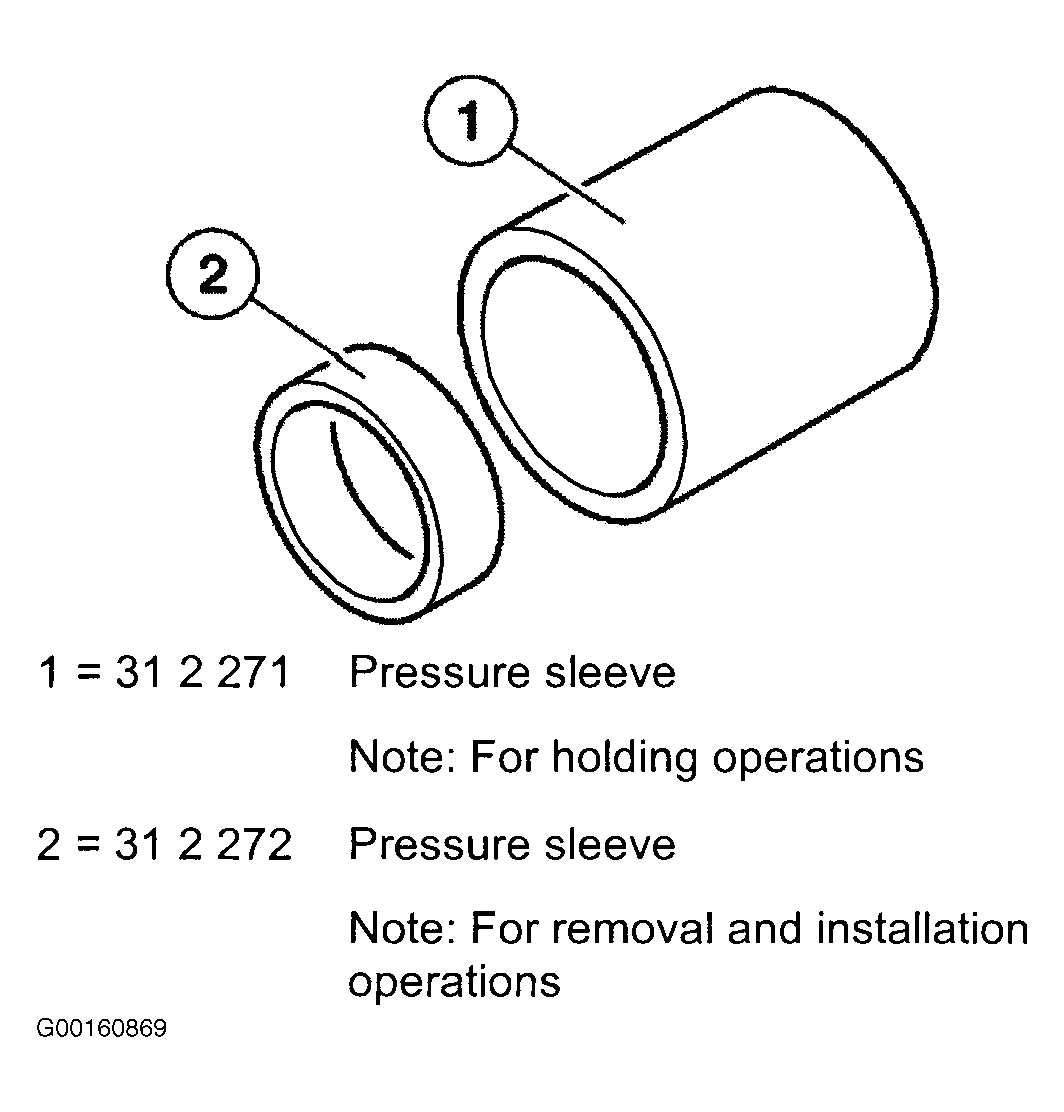

Fig 2: Identifying Pressure Sleeves (31 2 270)

G00160869

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Socket Wrench Socket (31 2 200)

G00160867

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Socket Wrench Socket (31 2 210)

G00155836

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Spring Holder Set (31 3 350)

G00148275

Courtesy of BMW OF NORTH AMERICA, INC.

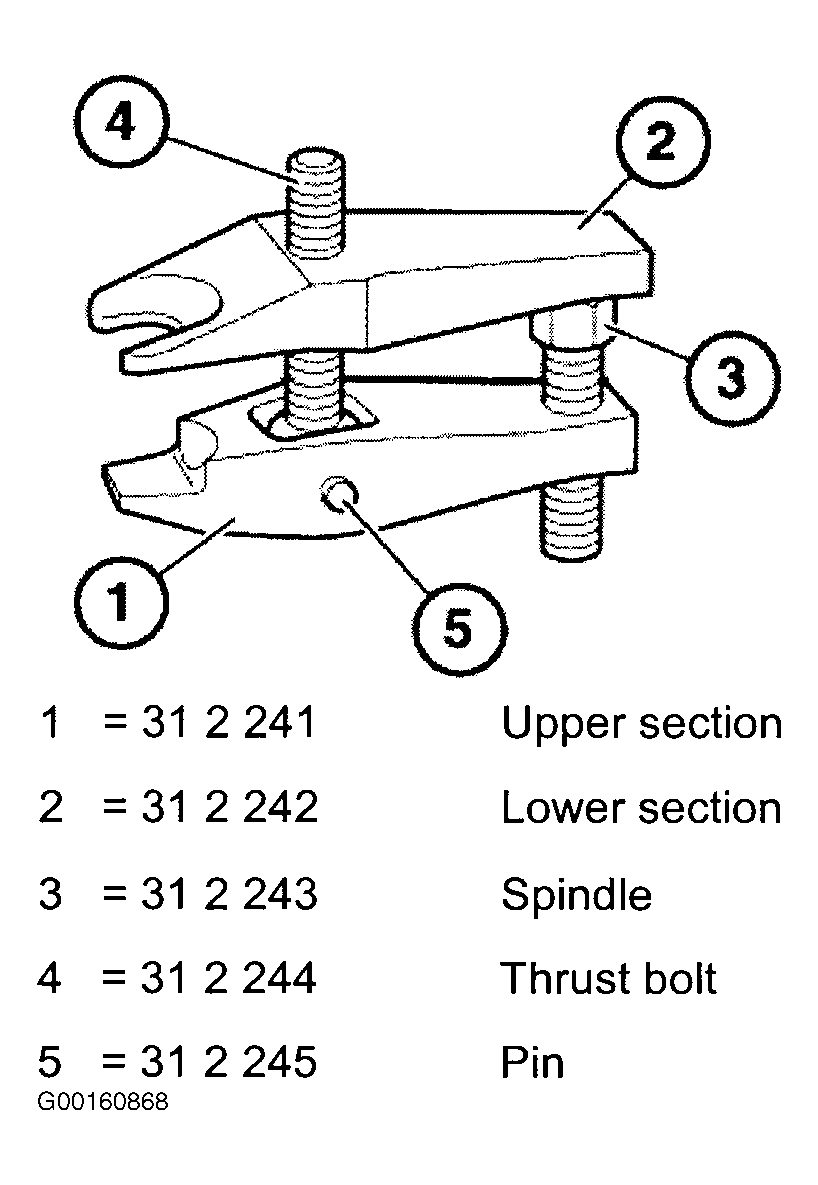

Fig 6: Identifying Tool (31 2 240)

G00160868

Courtesy of BMW OF NORTH AMERICA, INC.
