11 0 220 Compression test kit

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

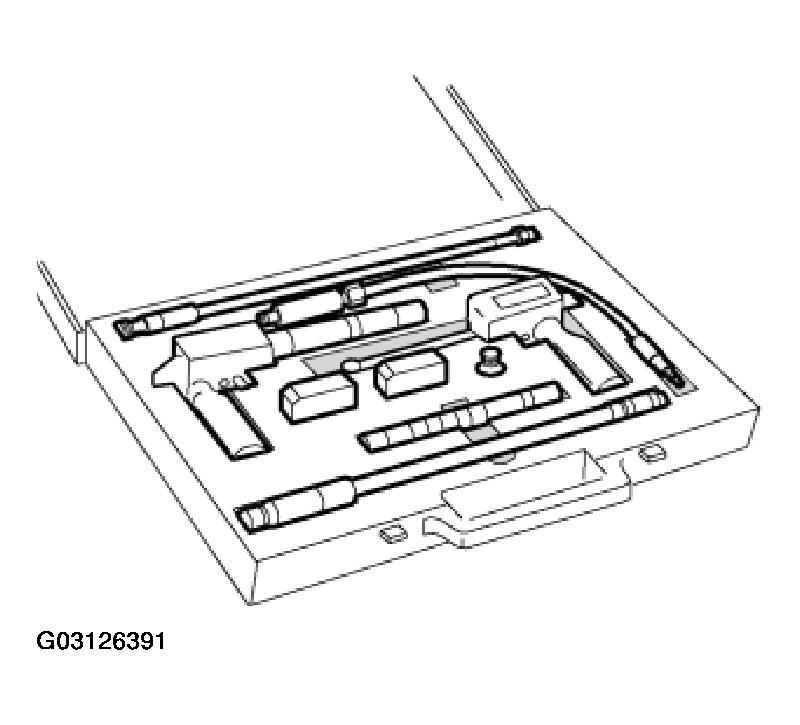

Fig 1: Identifying 11 0 220 Compression Test Kit

Courtesy of BMW OF NORTH AMERICA, INC.

COMPRESSION TEST KIT SPECIFICATION

Note:	For all petrol/gasoline and diesel engines.
Engine:	M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17
SI number:	1 09 92 (558)
Order number:	11 0 220
Compression test kit
Consisting of:
16 = 11 0 239	Adapter
NOTE: Engine M67, M67TU
11 0 221	Compression recorder for diesel engines
11 0 222	Test probe
NOTE: For compression recorder 11 0 221 and 11 0 160/Engine: M21, M41, M47, M51, M57
In conjunction with: 11 0 240
11 0 223	Test sheets (100 x)
NOTE: For compression recorder for 11 0 221
11 0 224	Compression recorder for petrol/gasoline engines
11 0 226	Test probe
NOTE: For compression recorder 11 0 224 and 11 0 160/engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62
In conjunction with: 11 0 240
11 0 228	Rubber taper with fitting
NOTE: For compression recorder 11 0 224 and 11 0 160/engine: M10, M20, M30
In conjunction with: 11 0 240
11 0 229	Test charts (100 x)
NOTE: For compression recorder 11 0 224
11 0 231	Case
NOTE: With foam inlay for compression recorder
11 0 233	Non-return valve
11 0 234	Filter 3x3 mm
11 0 235	Test probe, screw-in
NOTE: For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54
In conjunction with: DIS and DIS pressure sensor
11 0 236	Test probe
NOTE: For compression recorder 11 0 221 or DIS pressure sensor / engine: M47, M57, M57TU
11 0 237	Adapter
NOTE: For measuring "absolute compression" at all cylinders. Engine: W17
In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235
