Set Oscilloscope Display Crankshaft Sensor
Set Oscilloscope Display Crankshaft Sensor
Signal at idle:

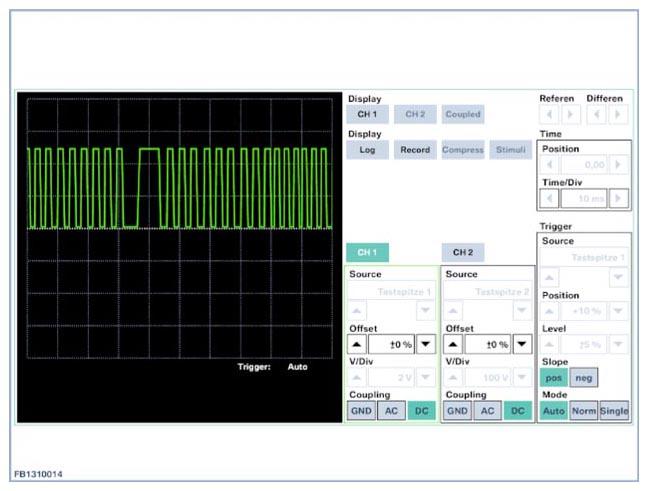

Fig 1: Display - Crankshaft Sensor Signal Waveform Screen (Signal At Idle)
Courtesy of BMW OF NORTH AMERICA, INC.
Signal at starting speed:

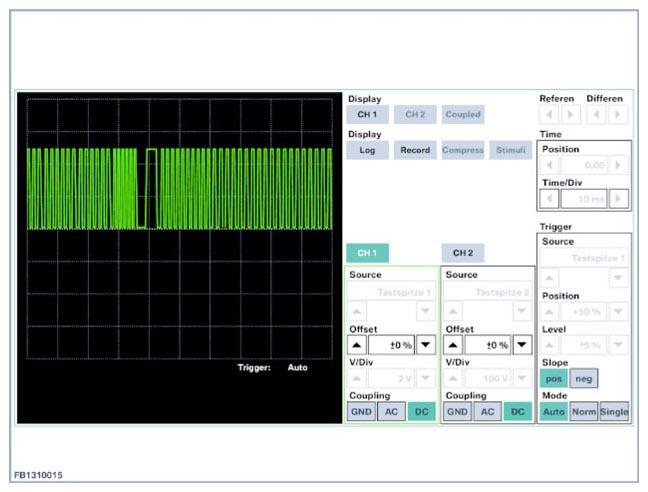

Fig 2: Display - Crankshaft Sensor Signal Waveform Screen (Signal At Starting Speed)
Courtesy of BMW OF NORTH AMERICA, INC.
