11 5 290 Assembly Tool

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For installing clamping rail bearing pin.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 290

Assembly tool

Consisting of:

1 = 11 5 291 Socket wrench

2 = 11 5 292 Screw

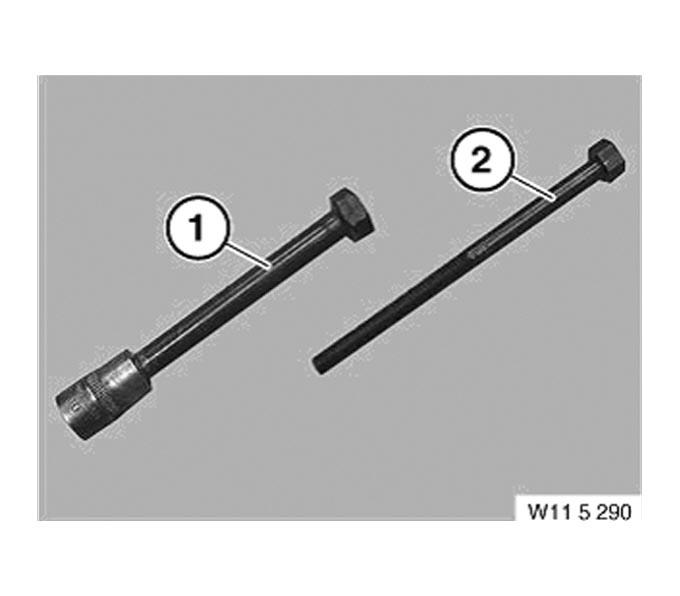

Fig 1: Identifying Assembly Tool (11 5 290)

Courtesy of BMW OF NORTH AMERICA, INC.
