11 5 330 Assembly Tool

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE:

For installing front shaft seal.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 330

Assembly tool

Consisting of:

1 = 11 5 331 Basic body

2 = 11 5 332 Thrust sleeve

3 = 11 5 333 Nut with bearing

4 = 11 5 334 Set of screws (2 x)

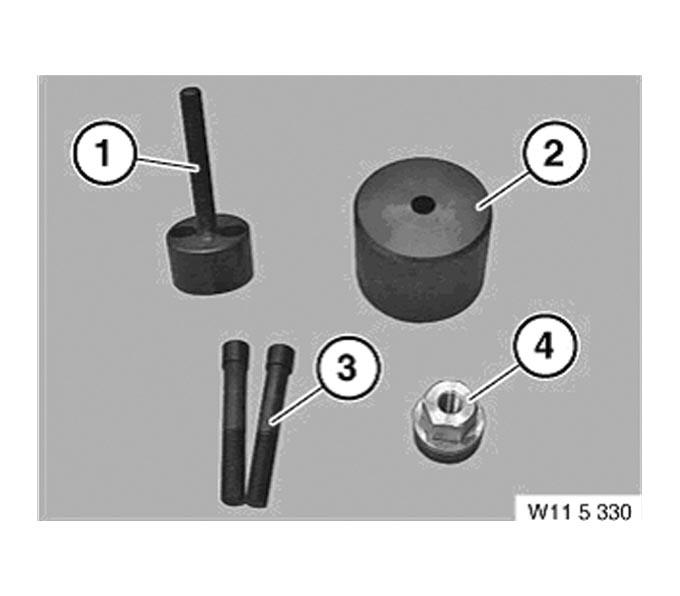

Fig 1: Identifying Assembly Tool (11 5 330)

Courtesy of BMW OF NORTH AMERICA, INC.
