Minimum set: Mechanical tools
In conjunction with: 11 2 383, 11 2 386
NOTE:
For removing rotary shaft seal from timing case cover
Engine: M47, M47TU, S65, S85
Storage location: B11
SI number: 1 06 98 (306)
Order number: 11 6 360

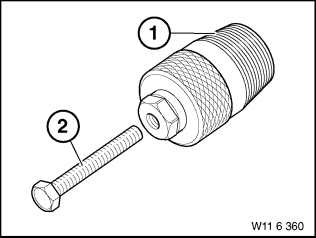

Extractor
Consisting of:
1 = 11 6 361 Threaded bell housing
2 = 11 6 362 Spindle M12 x 100
