Strut With Coil Spring: Assembly

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

To assemble, reverse disassembly procedure. Check all components and replace, if necessary. Replace self-locking nuts and tighten to specification. See TORQUE SPECIFICATIONS .
Coil spring must fit positively in lower spring plate/spring pad. See Fig 1.
If replacing support bearing and original support bearing (2) was fitted without centering pin (1), centering pin (1) of new support bearing (2) must be driven out. See Fig 2.

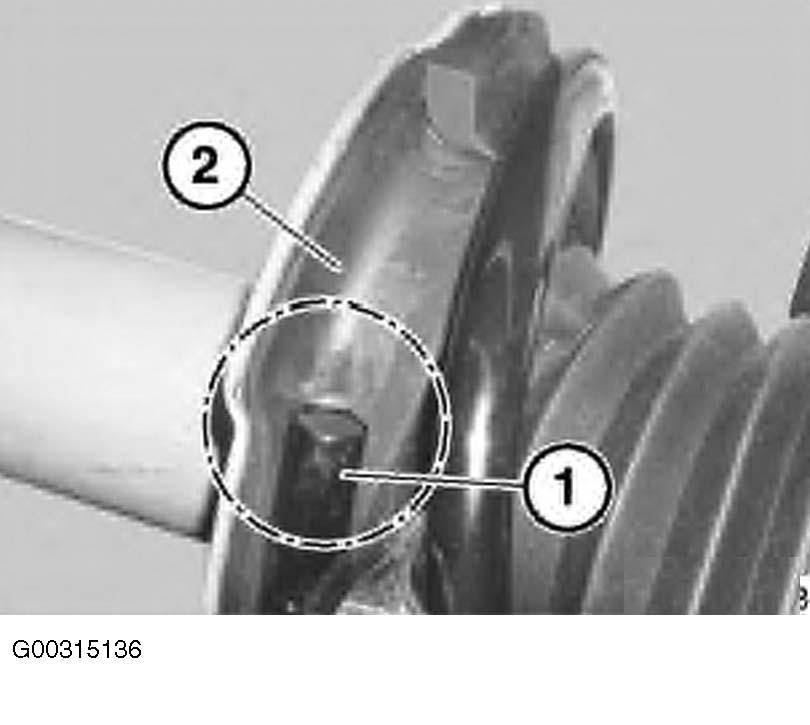

Fig 1: Fitting Coil Spring In Lower Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

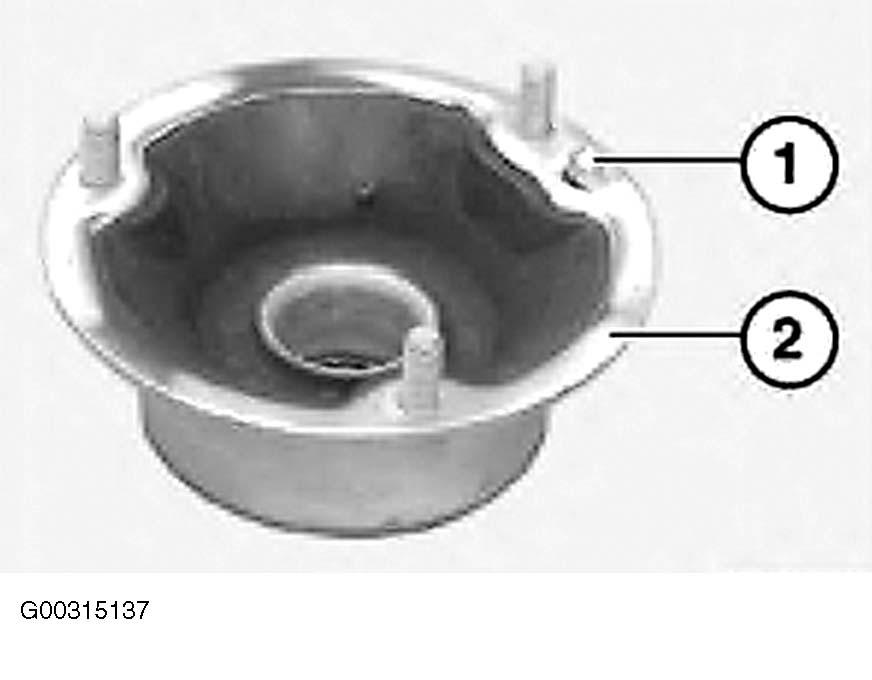

Fig 2: Locating Centering Pin

Courtesy of BMW OF NORTH AMERICA, INC.
