00 00... Changing differential oil

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Change oil with rear axle differential at normal operating temperature.

Final drive oil, refer to Maintenance. For filling quantity, refer to ENGINE - TECHNICAL DATA .

Unscrew drain plug (2), clean and reinstall.

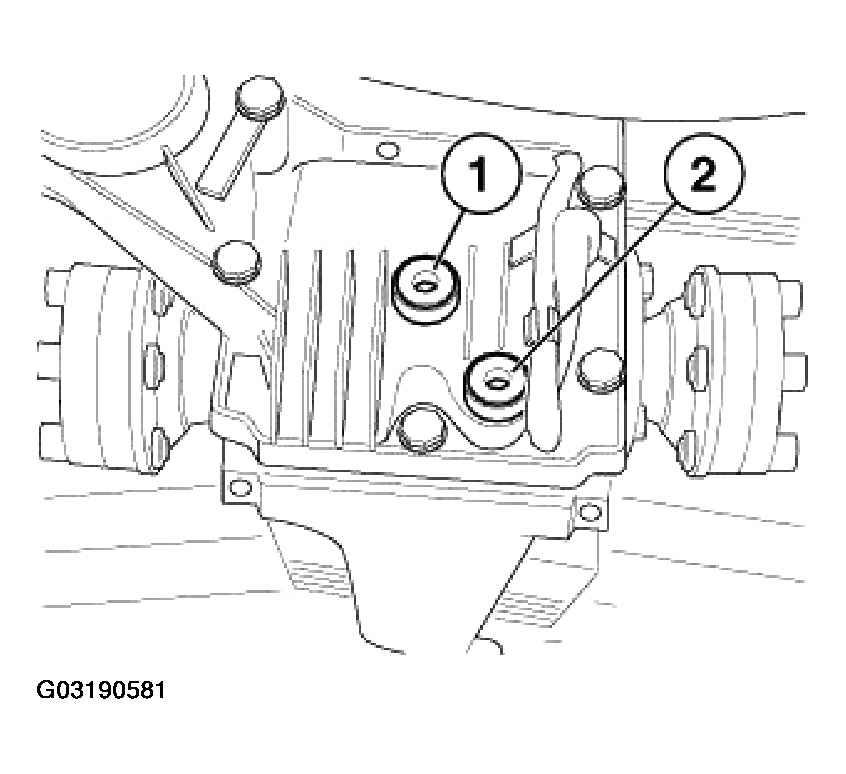

Fig 1: Identifying Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, refer to ENGINE - TIGHTENING TORQUES .
