11-6250 Measuring device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0493143 116250 Measuring device MW

NOTE: (Measuring device) Sensing arm measuring device With small tripod for measuring tooth flank and side clearance on counterbalance shafts, camshafts and crankshafts. [Released]

SI number: 01 04 98 (304)

Consisting of:

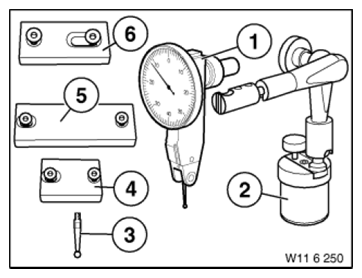

Fig 1: Identifying Measuring Device (0493143)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0493146 Sensor
NOTE: (Sensor) Sensor arm 11.5 mm [Discontinued]
1 = 0493144 Dial gauge
NOTE: (Dial gauge) With 0.8 mm measuring range in each direction [Released]
2 = 0493145 Tripod
NOTE: (Small hydraulic tripod with magnetic base) [Released]
4 = 0495214 Plate
NOTE: (Fixture) Engine: M47T2; M57T2; S85 [Released]
5 = 0495468 Plate
NOTE: (Fixture M7) Engine camshaft: M67TU [Released]
6 = 0495470 Plate
NOTE: (Fixture M8) Engine crankshaft: M67TU [Released]
