64 11... Installing SERVODRIVE

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

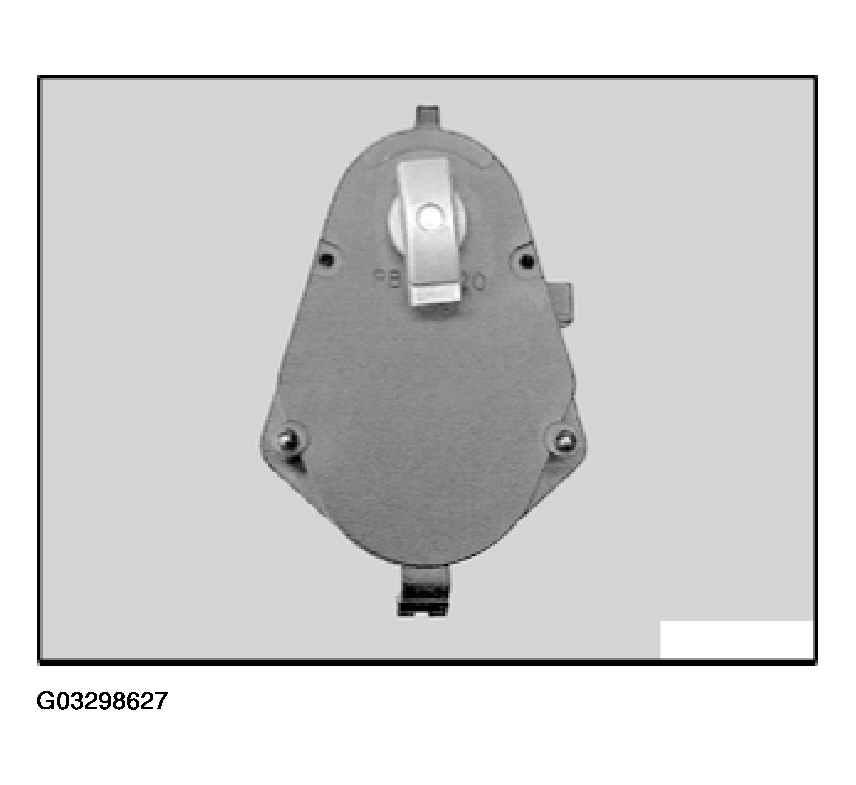

Fig 1: View Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
