Checking Function Of Power Steering Pump: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Make sure all parts are absolutely clean. No dirt is allowed to enter the system.
Check all hose connections, pump and steering gear for leaks. Remove engine underguard. Detach pressure line from pump and connect special tool (32 4 000). See USING SPECIAL TOOL (32 4 000) .

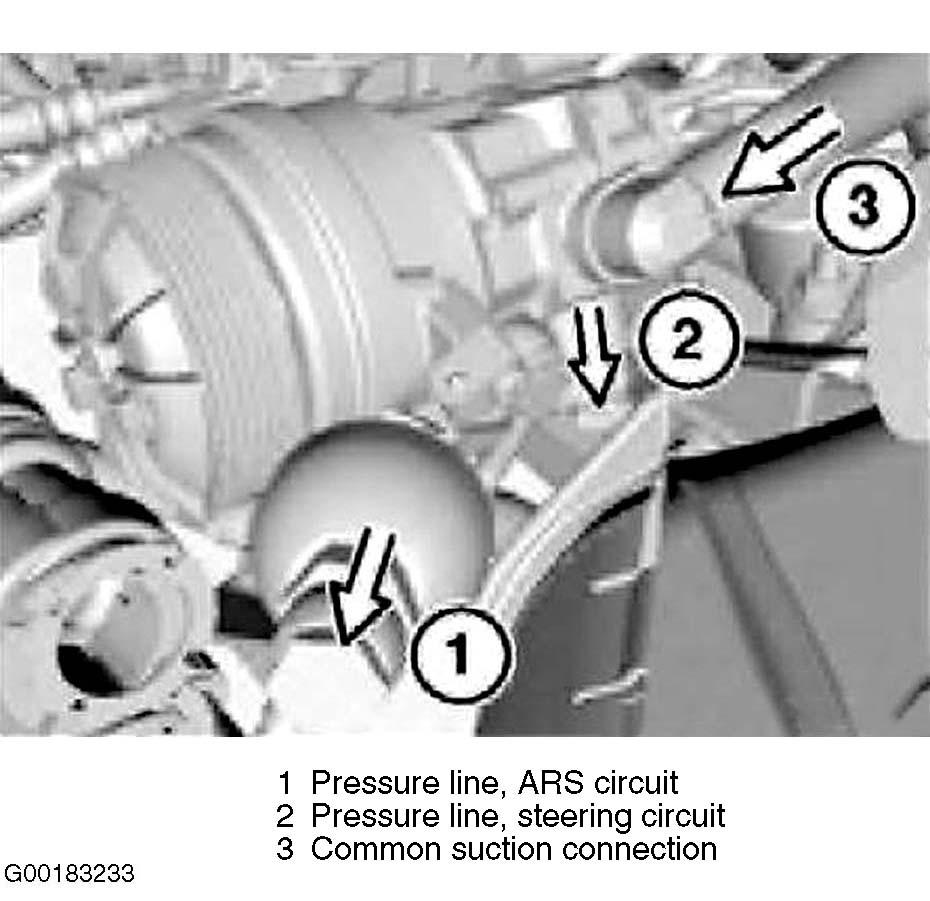

Vehicles with ARS are equipped with tandem pump connections. See Figure.
